Please send RFQ , we will respond immediately.

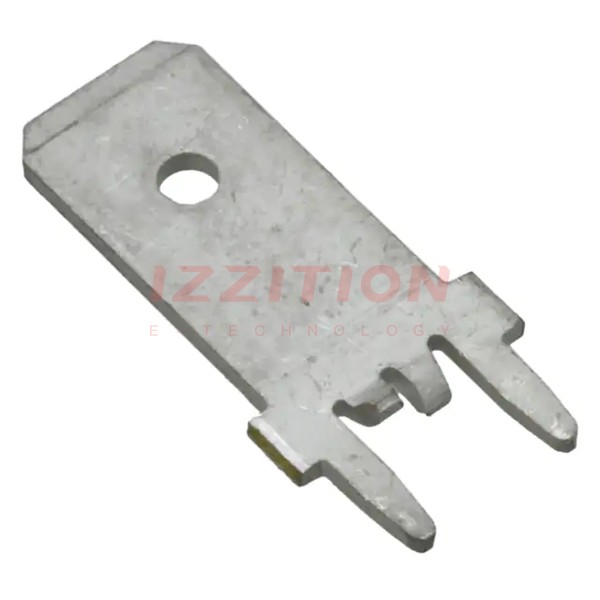

| Part Number | 1217169-1 | 1217129-1 | 1217149-1 | 1217167-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard |
| Gender | Male | Female | Female | Male |
| Tab Width | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.032" (0.81mm) |
| Tab Length | 0.470" (11.94mm) | 0.250" (6.35mm) | 0.248" (6.30mm) | 0.540" (13.72mm) |
| Length - Overall | 0.710" (18.03mm) | 0.585" (14.86mm) | - | 0.780" (19.81mm) |
| Termination | Solder | Crimp | Crimp | Solder |
| Wire Gauge | - | 20-24 AWG | 14-18 AWG | - |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Through Hole | Free Hanging (In-Line) | Free Hanging (In-Line) | Through Hole |
| Features | - | - | - | - |
| Color | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | Tin | Tin |
