Please send RFQ , we will respond immediately.

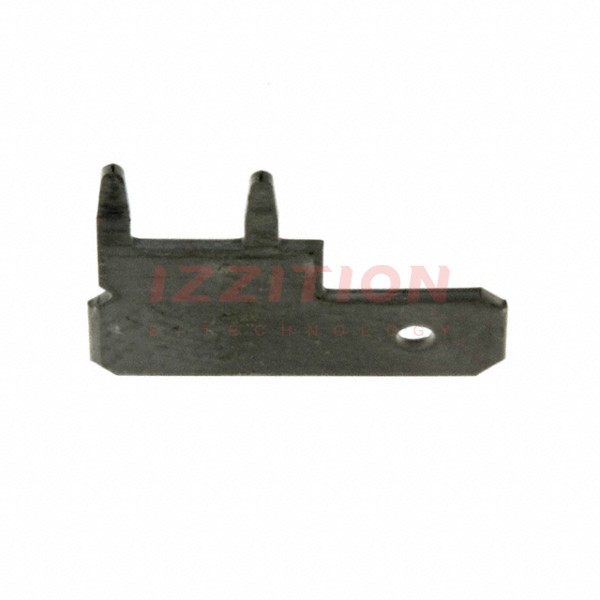

| Part Number | 1217156-1 | 1217756-1 | 1217056-1 | 1217126-1 | 1217136-1 | 1217151-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Terminal Type | Angled - 90° | Angled - 90° | Standard | Standard | Standard | Stacked |
| Gender | Male | Male | Male | Male | Male | Female and Male |
| Tab Width | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.020" (0.51mm) |
| Tab Length | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.312" (7.92mm) | 0.410" (10.41mm) | 0.312" (7.92mm) | 0.225" (5.72mm) |
| Length - Overall | - | - | 0.622" (15.80mm) | 0.650" (16.50mm) | 0.582" (14.78mm) | 0.615" (15.62mm) |
| Termination | Solder | Solder | Solder | Solder | Solder | Crimp |
| Wire Gauge | - | - | - | - | - | 14-18 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole | Through Hole | Through Hole | Free Hanging (In-Line) |
| Features | - | - | - | - | - | - |
| Color | - | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin |
