Please send RFQ , we will respond immediately.

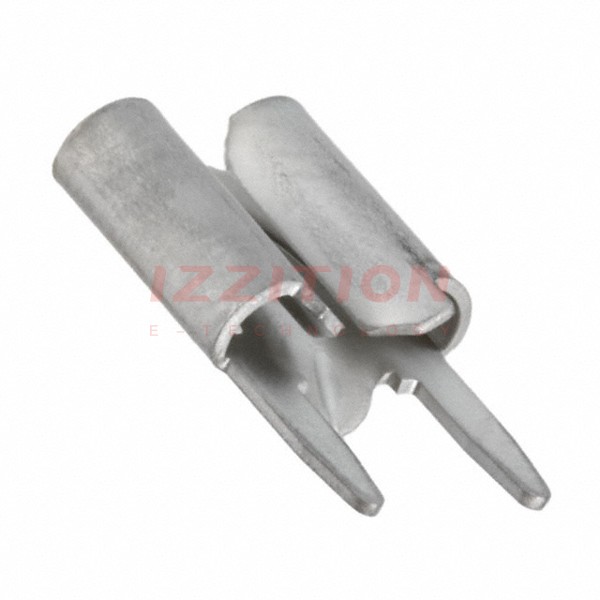

| Part Number | 1217137-1 | 1217167-1 | 1217138-1 | 1217137-2 | 1217107-1 | 1217127-1 | 1217133-1 | 1217136-1 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Angled - 90°, Flag | Standard | Horizontal | Standard | Standard | Standard |
| Gender | Female | Male | Female | Female | Female | Male | Male | Male |
| Tab Width | 0.205" (5.21mm), 0.250" (6.35mm) | 0.250" (6.35mm) | 0.110" (2.79mm) | 0.205" (5.21mm), 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.025" (0.64mm) | 0.032" (0.81mm) | 0.025" (0.64mm) | 0.025" (0.64mm) | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.330" (8.38mm) | 0.540" (13.72mm) | - | 0.330" (8.38mm) | 0.250" (6.35mm) | 0.540" (13.72mm) | 0.250" (6.35mm) | 0.312" (7.92mm) |
| Length - Overall | 0.510" (12.95mm) | 0.780" (19.81mm) | - | 0.510" (12.95mm) | - | 0.780" (19.81mm) | 0.490" (12.45mm) | 0.582" (14.78mm) |
| Termination | Solder | Solder | Crimp | Solder | Solder | Solder | Solder | Solder |
| Wire Gauge | - | - | 18-22 AWG | - | - | - | - | - |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Through Hole | Through Hole | Free Hanging (In-Line), Right Angle | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Features | - | - | - | - | - | - | - | - |
| Color | - | - | - | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Phosphor Bronze | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
