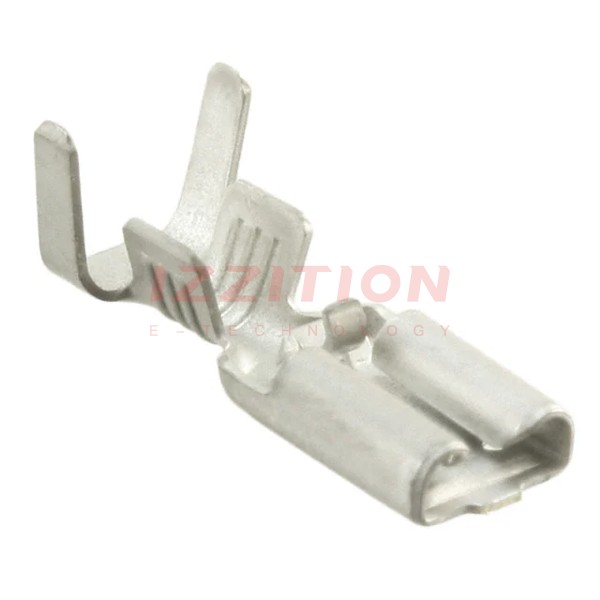

| Part Number | 1217114-1 | 1217124-1 | 1217114-2 | 1217118-1 | 1217113-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard | Standard |
| Gender | Female | Male | Female | Male | Female |
| Tab Width | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.110" (2.79mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.020" (0.51mm) |
| Tab Length | 0.255" (6.48mm) | 0.470" (11.94mm) | 0.255" (6.48mm) | 0.285" (7.24mm) | 0.255" (6.48mm) |
| Length - Overall | 0.670" (17.02mm) | 0.710" (18.03mm) | 0.670" (17.02mm) | 0.570" (14.48mm) | 0.670" (17.02mm) |
| Termination | Crimp | Solder | Crimp | Crimp | Crimp |
| Wire Gauge | 14-18 AWG | - | 14-18 AWG | 16-20 AWG | 18-22 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Through Hole | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - | - |
| Color | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Brass |
| Contact Finish | - | Tin | Tin | Tin | - |
