Please send RFQ , we will respond immediately.

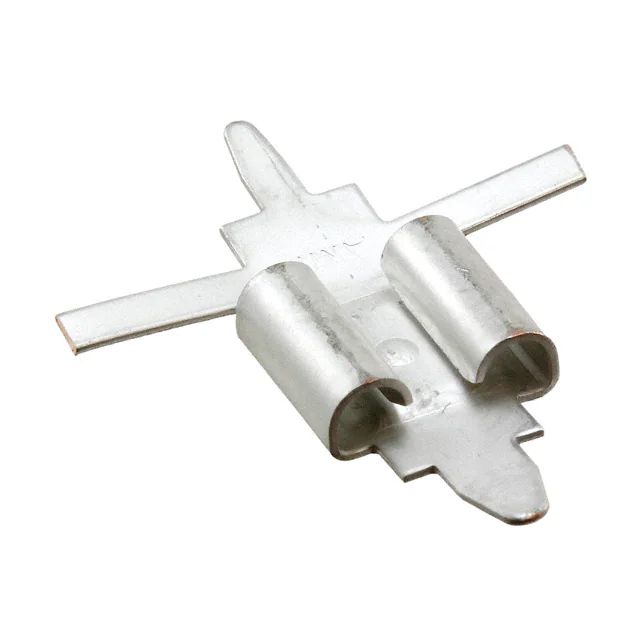

| Part Number | 1217107-1 | 1217167-1 | 1217137-1 | 1217127-1 | 1217102-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Terminal Type | Horizontal | Standard | Standard | Standard | Standard |
| Gender | Female | Male | Female | Male | Female |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.205" (5.21mm), 0.250" (6.35mm) | 0.250" (6.35mm) | 0.110" (2.79mm) |
| Tab Thickness | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.025" (0.64mm) | 0.032" (0.81mm) | 0.020" (0.51mm) |
| Tab Length | 0.250" (6.35mm) | 0.540" (13.72mm) | 0.330" (8.38mm) | 0.540" (13.72mm) | 0.250" (6.35mm) |
| Length - Overall | - | 0.780" (19.81mm) | 0.510" (12.95mm) | 0.780" (19.81mm) | 0.635" (16.13mm) |
| Termination | Solder | Solder | Solder | Solder | Crimp |
| Wire Gauge | - | - | - | - | 16-20 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Free Hanging (In-Line) |
| Features | - | - | - | - | - |
| Color | - | - | - | - | - |
| Contact Material | Phosphor Bronze | Brass | Brass | Brass | Steel |
| Contact Finish | Tin | Tin | Tin | Tin | Nickel |
