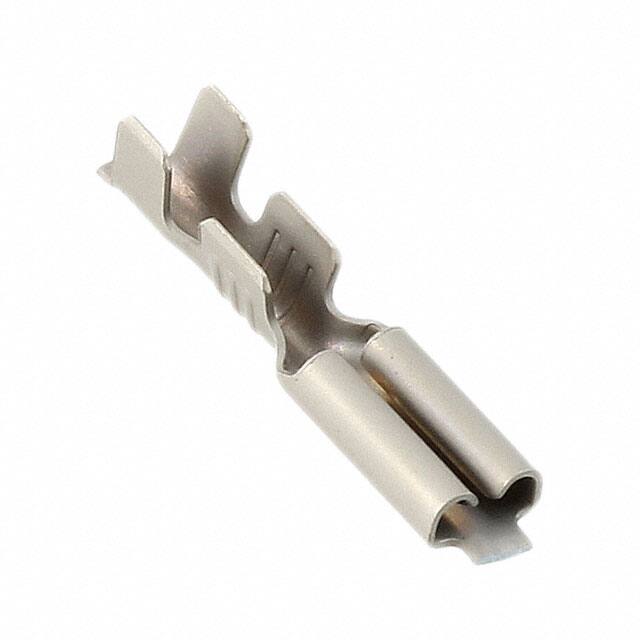

| Part Number | 1217102-1 | 1217107-1 | 1217002-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Standard | Horizontal | Standard |
| Gender | Female | Female | Male |
| Tab Width | 0.110" (2.79mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.032" (0.81mm) |
| Tab Length | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.312" (7.92mm) |
| Length - Overall | 0.635" (16.13mm) | - | 0.825" (20.96mm) |
| Termination | Crimp | Solder | Weld |
| Wire Gauge | 16-20 AWG | - | - |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Through Hole | Chassis Mount |
| Features | - | - | - |
| Color | - | - | - |
| Contact Material | Steel | Phosphor Bronze | Steel |
| Contact Finish | Nickel | Tin | Nickel |
