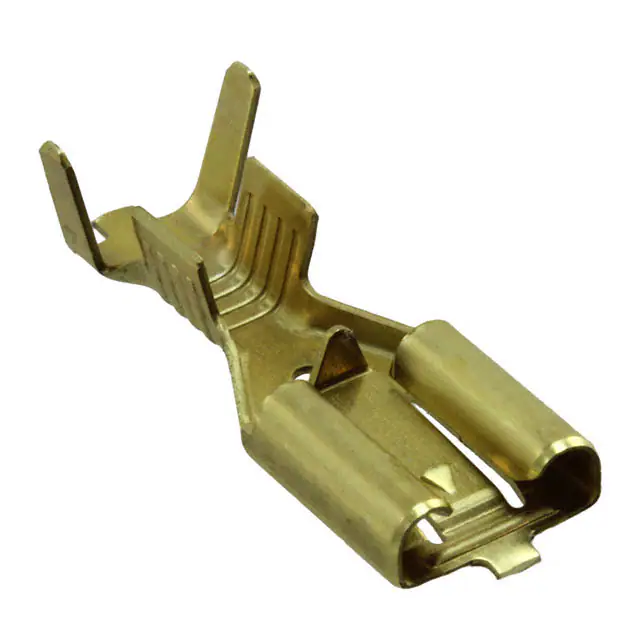

| Part Number | 1217095-1 | 1217095-2 | 1217096-1 | 1217097-1 | 1217092-1 | 1217094-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Obsolete | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard | Standard | Standard |
| Gender | Female | Female | Female | Female | Female | Female |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.293" (7.44mm) | 0.293" (7.44mm) | 0.255" (6.48mm) | 0.255" (6.48mm) | 0.293" (7.44mm) | 0.293" (7.44mm) |
| Length - Overall | 0.771" (19.58mm) | 0.771" (19.58mm) | 0.670" (17.02mm) | 0.670" (17.02mm) | 0.771" (19.58mm) | 0.771" (19.58mm) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 12-16 AWG | 12-16 AWG | 14-18 AWG | 18-22 AWG | 12-16 AWG | 14-18 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - | - | - |
| Color | - | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Brass | Brass |
| Contact Finish | - | Tin | Tin | - | - | - |
