Please send RFQ , we will respond immediately.

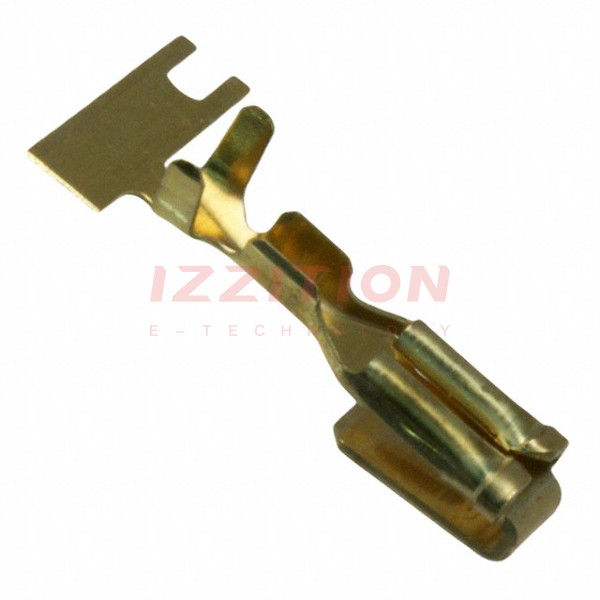

| Part Number | 1217083-1 | 1217089-1 | 1217084-1 | 1217043-1 | 1217073-1 | 1217080-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Terminal Type | Stacked | Angled - 90° | Stacked | Stacked | Standard | Standard |
| Gender | Female and Male | Male | Female and Male | Female and Male | Male | Female |
| Tab Width | 0.110" (2.79mm) | 0.110" (2.79mm) | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.125" (3.18mm) | 0.205" (5.21mm), 0.250" (6.35mm) |
| Tab Thickness | 0.018" x 0.020" (0.46mm x 0.51mm) / 0.020" (0.51mm) | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.032" (0.81mm) |
| Tab Length | 0.250" (6.35mm) | - | 0.225" (5.72mm) | 0.305" (7.75mm) | 0.370" (9.40mm) | 0.330" (8.38mm) |
| Length - Overall | 0.600" (15.24mm) | - | 0.615" (15.62mm) | 0.780" (19.81mm) | 0.940" (23.88mm) | 0.480" (12.19mm) |
| Termination | Crimp | Solder | Crimp | Crimp | Crimp | Solder |
| Wire Gauge | 18-22 AWG | - | 18-22 AWG | 10-14 AWG | 1500-5000 CMA | - |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Through Hole, Right Angle | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Through Hole |
| Features | - | - | - | - | - | - |
| Color | - | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Brass | Brass |
| Contact Finish | - | Tin | Tin | Tin | Tin | Tin |
