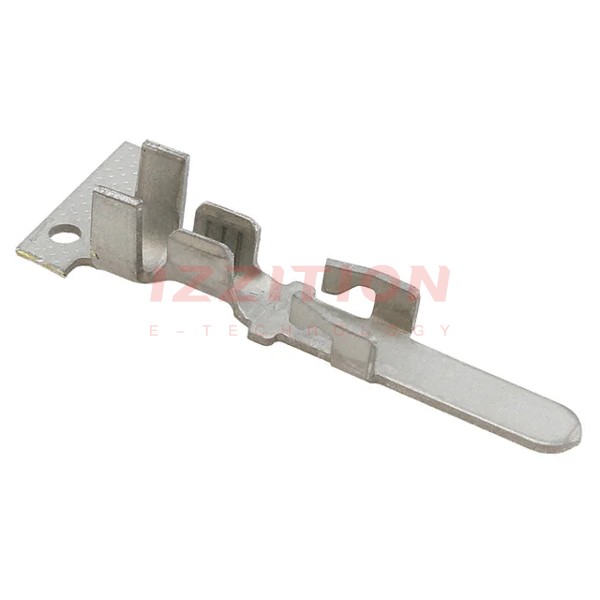

| Part Number | 1217071-1 | 1217073-1 | 1217072-1 | 1217001-1 | 1217061-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Obsolete | Active |
| Terminal Type | Standard | Standard | Standard | Stacked | Standard |
| Gender | Male | Male | Male | Female and Male | Male |
| Tab Width | 0.125" (3.18mm) | 0.125" (3.18mm) | 0.125" (3.18mm) | 0.187" (4.75mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.032" (0.81mm) / 0.020" (0.51mm) | 0.032" (0.81mm) |
| Tab Length | 0.370" (9.40mm) | 0.370" (9.40mm) | 0.370" (9.40mm) | 0.225" (5.72mm) | 0.250" (6.35mm) |
| Length - Overall | 1.100" (27.94mm) | 0.940" (23.88mm) | 1.100" (27.94mm) | 0.615" (15.62mm) | - |
| Termination | Crimp | Crimp | Crimp | Crimp | Solder |
| Wire Gauge | 14-20 AWG | 1500-5000 CMA | 200-850 CMA | 16-20 AWG | - |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Through Hole, Right Angle |
| Features | - | - | - | - | - |
| Color | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | Tin | - | Tin |
