Please send RFQ , we will respond immediately.

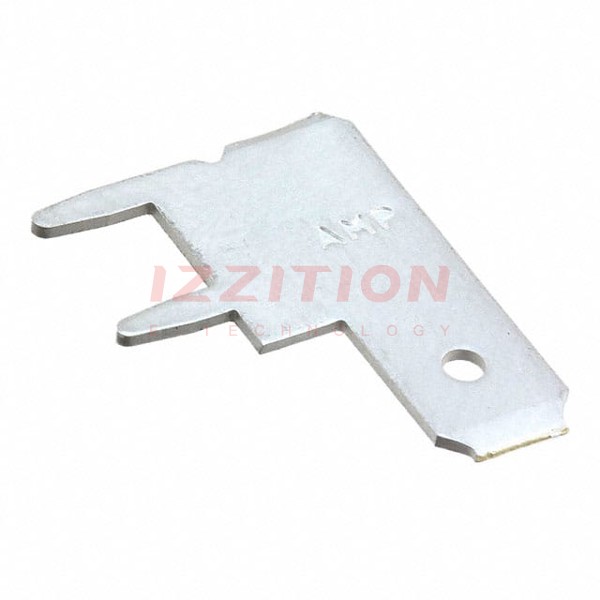

| Part Number | 1217062-1 | 1217092-1 | 1217072-1 | 1217002-1 | 1217061-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Terminal Type | Angled - 90° | Standard | Standard | Standard | Standard |
| Gender | Male | Female | Male | Male | Male |
| Tab Width | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.125" (3.18mm) | 0.250" (6.35mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.250" (6.35mm) | 0.293" (7.44mm) | 0.370" (9.40mm) | 0.312" (7.92mm) | 0.250" (6.35mm) |
| Length - Overall | - | 0.771" (19.58mm) | 1.100" (27.94mm) | 0.825" (20.96mm) | - |
| Termination | Solder | Crimp | Crimp | Weld | Solder |
| Wire Gauge | - | 12-16 AWG | 200-850 CMA | - | - |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Through Hole, Right Angle | Free Hanging (In-Line) | Free Hanging (In-Line) | Chassis Mount | Through Hole, Right Angle |
| Features | - | - | - | - | - |
| Color | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Steel | Brass |
| Contact Finish | Tin | - | Tin | Nickel | Tin |
