Please send RFQ , we will respond immediately.

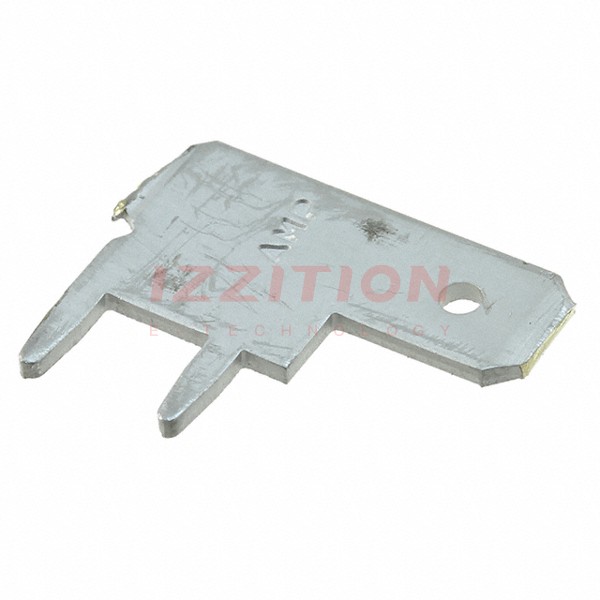

| Part Number | 1217061-1 | 1217861-1 | 1217071-1 | 1217062-1 | 1217001-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Obsolete |
| Terminal Type | Standard | Standard | Standard | Angled - 90° | Stacked |
| Gender | Male | Male | Male | Male | Female and Male |
| Tab Width | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.125" (3.18mm) | 0.187" (4.75mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.032" (0.81mm) / 0.020" (0.51mm) |
| Tab Length | 0.250" (6.35mm) | 0.352" (8.94mm) | 0.370" (9.40mm) | 0.250" (6.35mm) | 0.225" (5.72mm) |
| Length - Overall | - | 0.552" (14.02mm) | 1.100" (27.94mm) | - | 0.615" (15.62mm) |
| Termination | Solder | Solder | Crimp | Solder | Crimp |
| Wire Gauge | - | - | 14-20 AWG | - | 16-20 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Through Hole, Right Angle | Through Hole | Free Hanging (In-Line) | Through Hole, Right Angle | Free Hanging (In-Line) |
| Features | - | - | - | - | - |
| Color | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | Tin | Tin | - |
