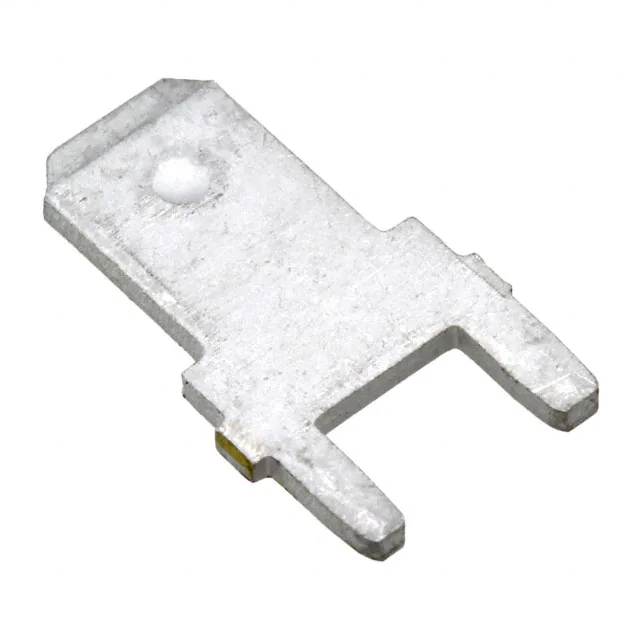

| Part Number | 1217057-1 | 1217097-1 | 1217027-1 | 1217050-1 | 1217056-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete | Active | Active | Active |
| Terminal Type | Standard | Standard | Angled - 90°, Flag | Angled - 45° | Standard |
| Gender | Male | Female | Female | Male | Male |
| Tab Width | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | - | 0.255" (6.48mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.312" (7.92mm) |
| Length - Overall | 0.487" (12.37mm) | 0.670" (17.02mm) | - | - | 0.622" (15.80mm) |
| Termination | Solder | Crimp | Crimp | Screw, Rivet, Stud | Solder |
| Wire Gauge | - | 18-22 AWG | 14-18 AWG | - | - |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Through Hole | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Board, Chassis | Through Hole |
| Features | - | - | - | - | - |
| Color | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Brass |
| Contact Finish | Tin | - | Tin | Tin | Tin |
