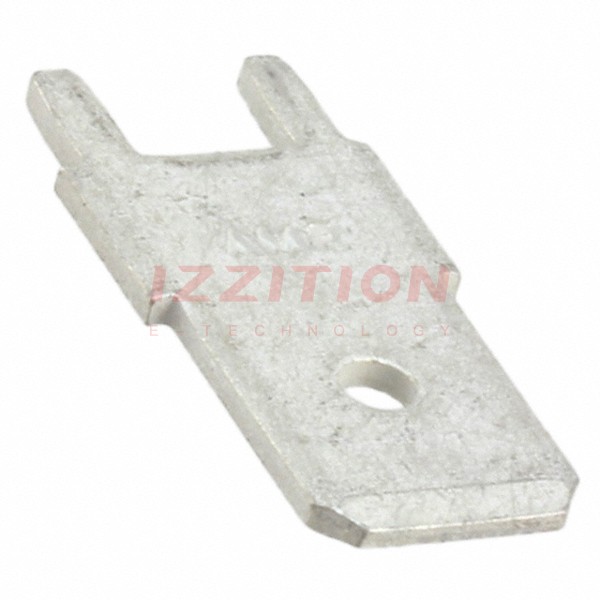

| Part Number | 1217056-1 | 1217057-1 | 1217156-1 | 1217756-1 | 1217096-1 | 1217006-1 | 1217050-1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Angled - 90° | Angled - 90° | Standard | Standard | Angled - 45° |
| Gender | Male | Male | Male | Male | Female | Male | Male |
| Tab Width | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.312" (7.92mm) | - | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.255" (6.48mm) | 0.307" (7.80mm) | 0.250" (6.35mm) |
| Length - Overall | 0.622" (15.80mm) | 0.487" (12.37mm) | - | - | 0.670" (17.02mm) | - | - |
| Termination | Solder | Solder | Solder | Solder | Crimp | Crimp | Screw, Rivet, Stud |
| Wire Gauge | - | - | - | - | 14-18 AWG | 15-22 AWG | - |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Through Hole | Through Hole | Through Hole, Right Angle | Through Hole, Right Angle | Free Hanging (In-Line) | Free Hanging (In-Line) | Board, Chassis |
| Features | - | - | - | - | - | - | - |
| Color | - | - | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Brass | Steel | Brass |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Nickel | Tin |
