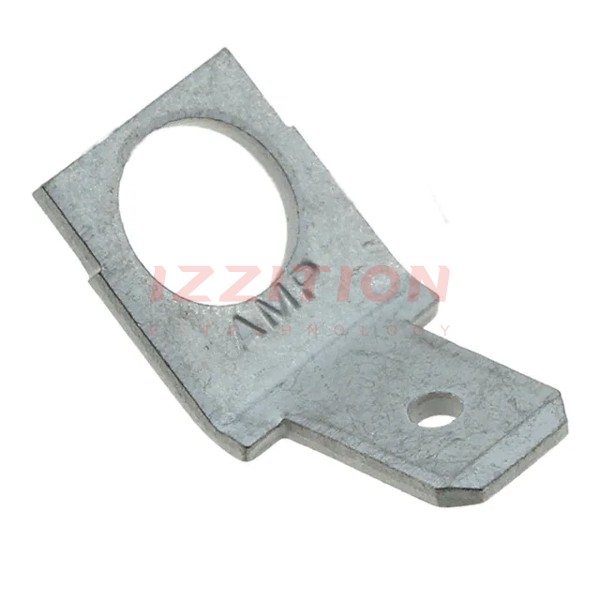

| Part Number | 1217050-1 | 1217057-1 | 1217080-1 | 1217056-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Angled - 45° | Standard | Standard | Standard |
| Gender | Male | Male | Female | Male |
| Tab Width | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.205" (5.21mm), 0.250" (6.35mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.250" (6.35mm) | - | 0.330" (8.38mm) | 0.312" (7.92mm) |
| Length - Overall | - | 0.487" (12.37mm) | 0.480" (12.19mm) | 0.622" (15.80mm) |
| Termination | Screw, Rivet, Stud | Solder | Solder | Solder |
| Wire Gauge | - | - | - | - |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Board, Chassis | Through Hole | Through Hole | Through Hole |
| Features | - | - | - | - |
| Color | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | Tin | Tin |
