Please send RFQ , we will respond immediately.

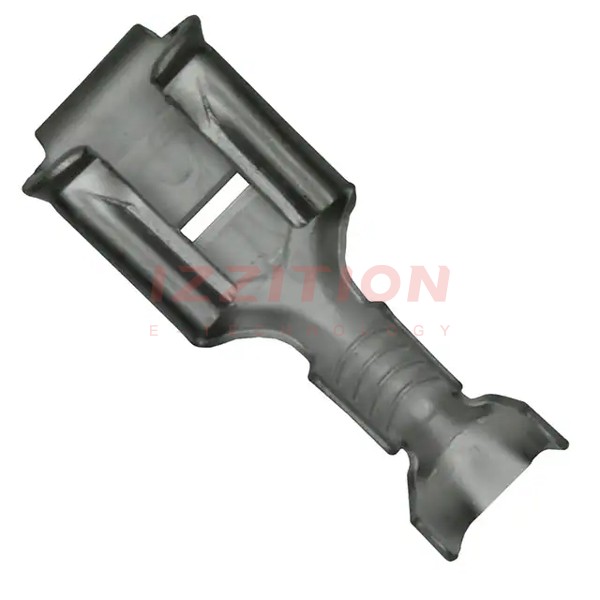

| Part Number | 1217043-1 | 1217073-1 | 1217083-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Stacked | Standard | Stacked |
| Gender | Female and Male | Male | Female and Male |
| Tab Width | 0.250" (6.35mm) | 0.125" (3.18mm) | 0.110" (2.79mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.018" x 0.020" (0.46mm x 0.51mm) / 0.020" (0.51mm) |
| Tab Length | 0.305" (7.75mm) | 0.370" (9.40mm) | 0.250" (6.35mm) |
| Length - Overall | 0.780" (19.81mm) | 0.940" (23.88mm) | 0.600" (15.24mm) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 10-14 AWG | 1500-5000 CMA | 18-22 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - |
| Color | - | - | - |
| Contact Material | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | - |
