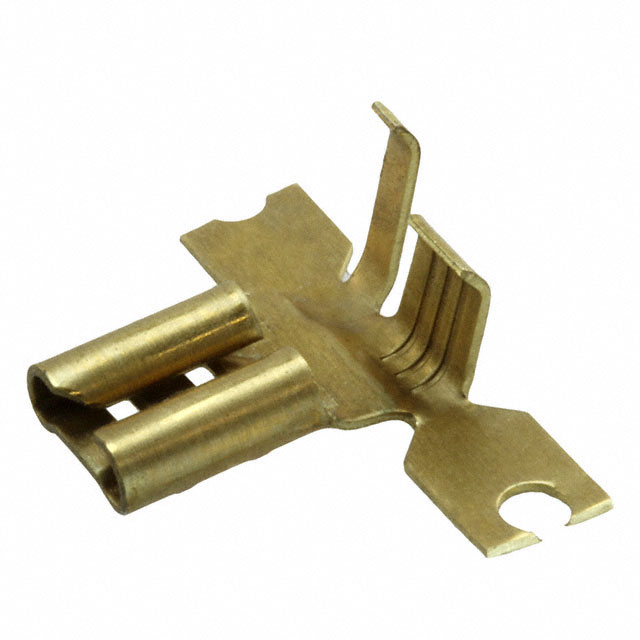

| Part Number | 1217009-1 | 1217029-1 | 1217089-1 | 1217001-1 | 1217002-1 | 1217006-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Obsolete | Active | Active |
| Terminal Type | Angled - 90°, Flag | Standard | Angled - 90° | Stacked | Standard | Standard |
| Gender | Female | Male | Male | Female and Male | Male | Male |
| Tab Width | 0.187" (4.75mm) | 0.125" (3.18mm) | 0.110" (2.79mm) | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.032" (0.81mm) / 0.020" (0.51mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.250" (6.35mm) | 0.370" (9.40mm) | - | 0.225" (5.72mm) | 0.312" (7.92mm) | 0.307" (7.80mm) |
| Length - Overall | - | 1.100" (27.94mm) | - | 0.615" (15.62mm) | 0.825" (20.96mm) | - |
| Termination | Crimp | Crimp | Solder | Crimp | Weld | Crimp |
| Wire Gauge | 16-20 AWG | 400-1600 CMA | - | 16-20 AWG | - | 15-22 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) | Through Hole, Right Angle | Free Hanging (In-Line) | Chassis Mount | Free Hanging (In-Line) |
| Features | - | - | - | - | - | - |
| Color | - | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Steel | Steel |
| Contact Finish | - | Tin | Tin | - | Nickel | Nickel |
