Please send RFQ , we will respond immediately.

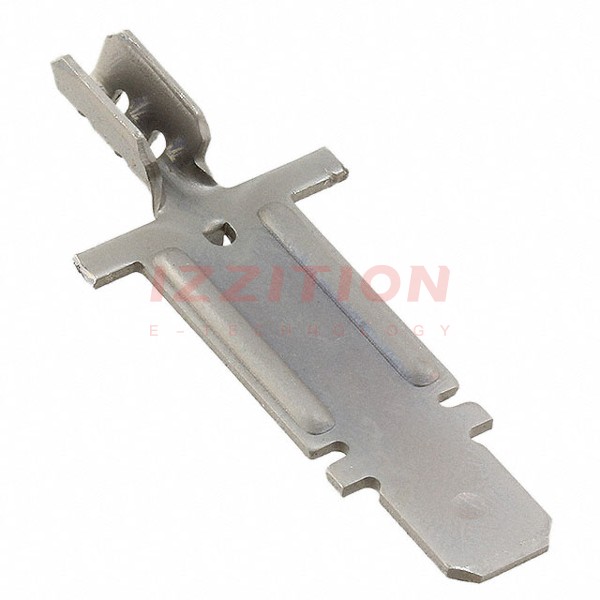

| Part Number | 1217006-1 | 1217056-1 | 1217096-1 | 1217009-1 | 1217001-1 | 1217002-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Obsolete | Active |
| Terminal Type | Standard | Standard | Standard | Angled - 90°, Flag | Stacked | Standard |
| Gender | Male | Male | Female | Female | Female and Male | Male |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.032" (0.81mm) / 0.020" (0.51mm) | 0.032" (0.81mm) |
| Tab Length | 0.307" (7.80mm) | 0.312" (7.92mm) | 0.255" (6.48mm) | 0.250" (6.35mm) | 0.225" (5.72mm) | 0.312" (7.92mm) |
| Length - Overall | - | 0.622" (15.80mm) | 0.670" (17.02mm) | - | 0.615" (15.62mm) | 0.825" (20.96mm) |
| Termination | Crimp | Solder | Crimp | Crimp | Crimp | Weld |
| Wire Gauge | 15-22 AWG | - | 14-18 AWG | 16-20 AWG | 16-20 AWG | - |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Through Hole | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) | Chassis Mount |
| Features | - | - | - | - | - | - |
| Color | - | - | - | - | - | - |
| Contact Material | Steel | Brass | Brass | Brass | Brass | Steel |
| Contact Finish | Nickel | Tin | Tin | - | - | Nickel |
