Please send RFQ , we will respond immediately.

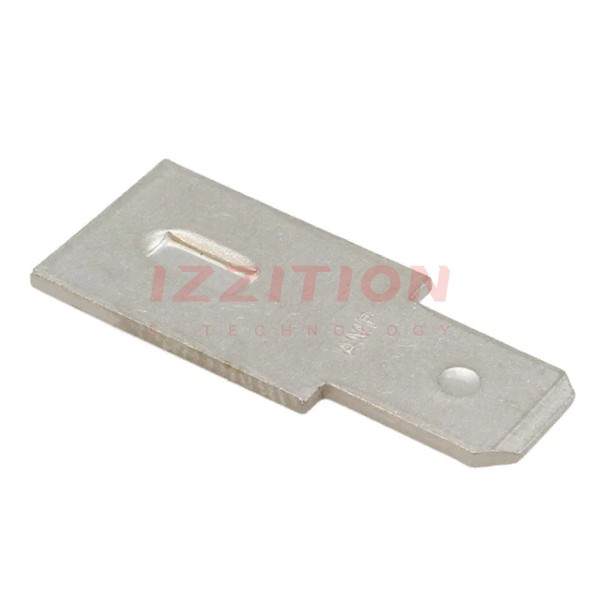

| Part Number | 1217002-1 | 1217092-1 | 1217102-1 | 1217006-1 | 1217072-1 | 1217062-1 | 1217009-1 | 1217001-1 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Obsolete |
| Terminal Type | Standard | Standard | Standard | Standard | Standard | Angled - 90° | Angled - 90°, Flag | Stacked |
| Gender | Male | Female | Female | Male | Male | Male | Female | Female and Male |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.110" (2.79mm) | 0.250" (6.35mm) | 0.125" (3.18mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.032" (0.81mm) / 0.020" (0.51mm) |
| Tab Length | 0.312" (7.92mm) | 0.293" (7.44mm) | 0.250" (6.35mm) | 0.307" (7.80mm) | 0.370" (9.40mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.225" (5.72mm) |
| Length - Overall | 0.825" (20.96mm) | 0.771" (19.58mm) | 0.635" (16.13mm) | - | 1.100" (27.94mm) | - | - | 0.615" (15.62mm) |
| Termination | Weld | Crimp | Crimp | Crimp | Crimp | Solder | Crimp | Crimp |
| Wire Gauge | - | 12-16 AWG | 16-20 AWG | 15-22 AWG | 200-850 CMA | - | 16-20 AWG | 16-20 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Chassis Mount | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Through Hole, Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) |
| Features | - | - | - | - | - | - | - | - |
| Color | - | - | - | - | - | - | - | - |
| Contact Material | Steel | Brass | Steel | Steel | Brass | Brass | Brass | Brass |
| Contact Finish | Nickel | - | Nickel | Nickel | Tin | Tin | - | - |
