Please send RFQ , we will respond immediately.

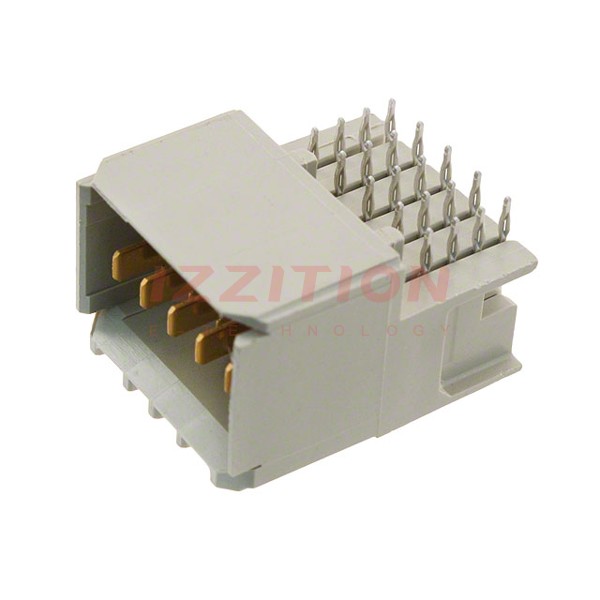

| Part Number | 120955-1 | 120958-1 | 120956-1 | 120957-1 | 120953-1 | 120954-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Connector Usage | Backplane | Backplane | - | Backplane | Backplane | Backplane |
| Connector Type | Header, Male Blades | Header, Male Blades | Header, Male Blades | Header, Male Blades | Receptacle, Female Blade Sockets | Header, Male Blades |
| Connector Style | Blade Power | Blade Power | Blade Power | Blade Power | Blade Power | Blade Power |
| Number of Positions | 5 | 8 | 6 | 7 | 4 | 4 |
| Number of Positions Loaded | All | All | All | All | All | All |
| Pitch | - | - | - | - | - | - |
| Number of Rows | 1 | 1 | - | 1 | 1 | 1 |
| Number of Columns | - | - | - | - | - | - |
| Mounting Type | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Through Hole | Board Edge, Through Hole, Right Angle |
| Termination | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | 5 Power | 8 Power | 6 Power | 7 Power | 4 Power | 4 Power |
| Features | Board Guide | Board Guide | Board Guide | Board Guide | - | Board Guide |
| Contact Finish | Gold or Gold-Palladium | Gold or Gold-Palladium | Gold or Gold-Palladium | Gold or Gold-Palladium | Gold or Gold-Palladium | Gold or Gold-Palladium |
| Contact Finish Thickness | - | - | - | - | - | - |
| Color | Gray | Gray | Gray | Gray | Gray | Gray |
