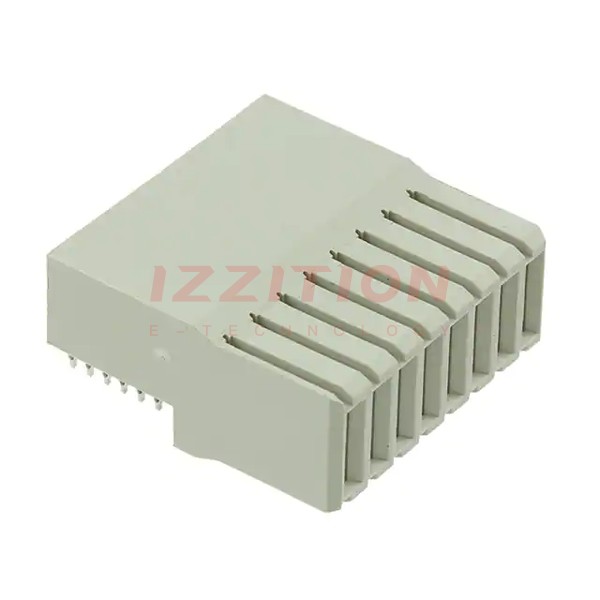

| Part Number | 120943-6 | 120953-6 | 120943-7 | 120943-1 | 120943-2 | 120943-3 | 120943-4 | 120943-5 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Usage | Backplane | Backplane | - | - | Backplane | Backplane | - | - |
| Connector Type | Receptacle, Female Blade Sockets | Receptacle, Female Blade Sockets | Receptacle, Female Power Blades | Receptacle, Female Blade Sockets | Receptacle, Female Blade Sockets | Receptacle, Female Blade Sockets | Receptacle, Female Power Blades | Receptacle, Female Power Blades |
| Connector Style | Blade Power | Blade Power | Blade Power | Blade Power | Blade Power | Blade Power | Blade Power | Blade Power |
| Number of Positions | 8 | 9 | 9 | 3 | 4 | 5 | 6 | 7 |
| Number of Positions Loaded | All | All | All | All | All | All | All | All |
| Pitch | - | - | - | - | - | - | - | - |
| Number of Rows | 1 | 1 | - | - | 1 | 1 | - | - |
| Number of Columns | - | - | - | - | - | - | - | - |
| Mounting Type | Board Edge, Through Hole, Right Angle | Through Hole | Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | 8 Power | 9 Power | 9 Power | 3 Power | 4 Power | 5 Power | 6 Power | 7 Power |
| Features | - | - | - | - | - | - | - | - |
| Contact Finish | Gold | Gold or Gold-Palladium | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 50.0µin (1.27µm) | - | 50.0µin (1.27µm) | 50.0µin (1.27µm) | 50.0µin (1.27µm) | 50.0µin (1.27µm) | 50.0µin (1.27µm) | 50.0µin (1.27µm) |
| Color | Gray | Gray | Natural | Gray | Gray | Gray | Natural | Natural |
