1123829-1
  • Share:

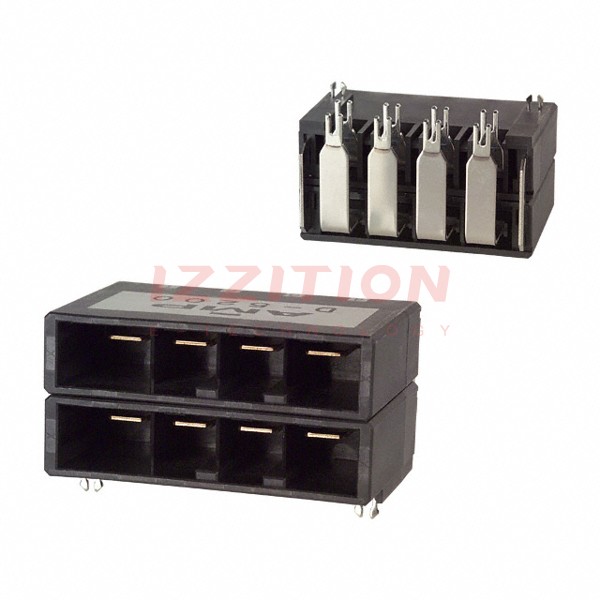

TE Connectivity AMP Connectors 1123829-1

Manufacturer No:
1123829-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
1123829-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 8POS 10.16MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Tab
Pitch - Mating:0.400" (10.16mm)
Number of Positions:8
Number of Rows:2
Row Spacing - Mating:0.400" (10.16mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:-
Contact Length - Post:0.150" (3.81mm)
Overall Contact Length:-
Insulation Height:1.035" (26.30mm)
Contact Shape:Rectangular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic, Polyester, Glass Filled
Features:Board Lock
Operating Temperature:-55°C ~ 105°C
Ingress Protection:IP20
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):30A
Voltage Rating:630V
0 Remaining View Similar

In Stock

$19.77
3

Please send RFQ , we will respond immediately.
