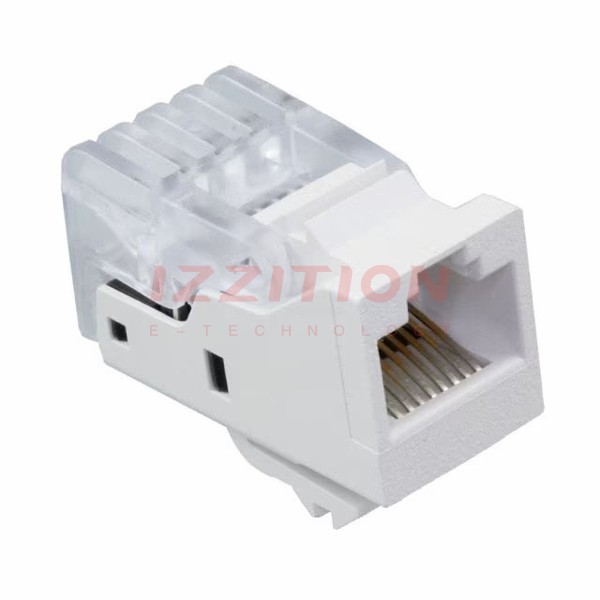

| Part Number | 1116604-3 | 1116604-4 | 1116604-9 | 1116604-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Type | Jack | Jack | Jack | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | 8p8c (RJ45, Ethernet) | 8p8c (RJ45, Ethernet) | 8p8c (RJ45, Ethernet) |
| Number of Ports | 1 | 1 | 1 | 1 |
| Number of Rows | 1 | 1 | 1 | 1 |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Panel Mount |
| Orientation | Straight | Straight | Straight | Straight |
| Termination | IDC | IDC | IDC | IDC |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| Ratings | Cat5e | Cat5e | Cat5e | Cat5e |
| Features | Panel Lock, Toolless | Panel Lock, Toolless | Panel Lock, Toolless | Panel Lock, Toolless |
| LED Color | Does Not Contain LED | Does Not Contain LED | Does Not Contain LED | Does Not Contain LED |
| Ingress Protection | - | - | - | - |
| Tab Direction | User Selectable | User Selectable | User Selectable | User Selectable |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Gold | Gold | Gold | Gold |
