Please send RFQ , we will respond immediately.

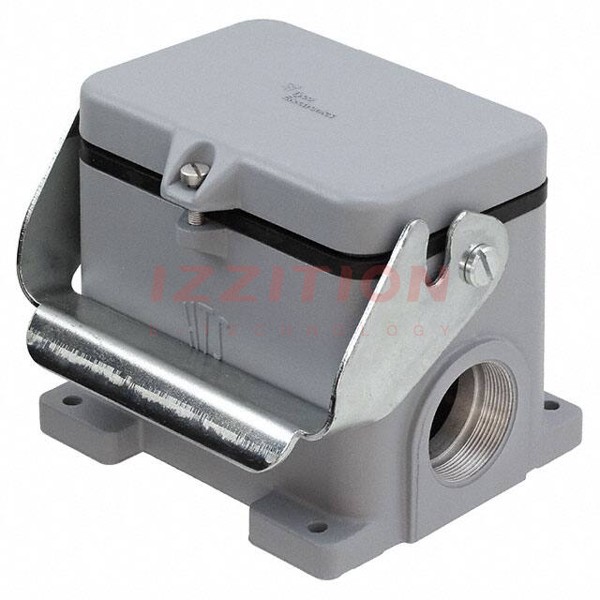

| Part Number | 1106481-1 | 1106481-4 | 1106411-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Type | Base - Box Mount | Base - Box Mount | Hood |
| Style | Side Entry | Side Entry | Top Entry |
| Size | 12 | 12 | 2 |
| Lock Location | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom |
| Thread Size | M40 | M40 | M20 |
| Size / Dimension | 5.512" L x 4.724" W x 3.878" H (140.00mm x 120.00mm x 98.50mm) | 5.512" L x 4.724" W x 3.878" H (140.00mm x 120.00mm x 98.50mm) | 2.480" L x 1.142" W x 2.256" H (63.00mm x 29.00mm x 57.30mm) |
| Housing Color | Gray | Black | Gray |
| Features | Cover, Feed Through | Feed Through | - |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Housing Material | Aluminum | Aluminum | Aluminum, Die Cast |
| Housing Finish | - | Aluminum Oxide | Powder Coated |
| Operating Temperature | -40°C ~ 80°C | - | - |
