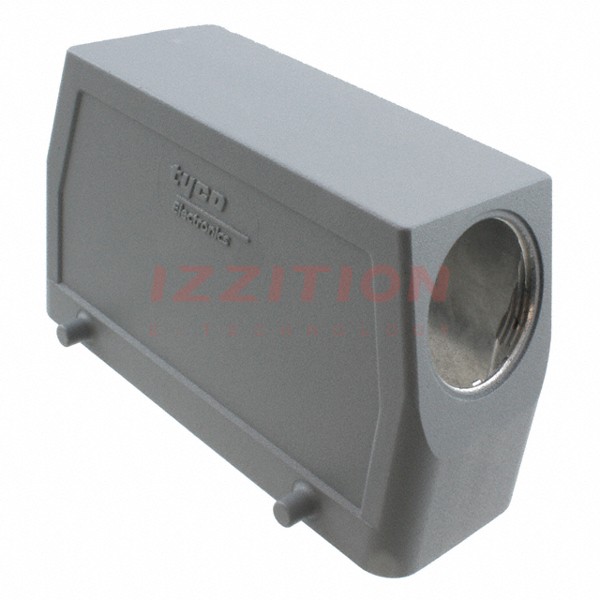

| Part Number | 1106465-4 | 1106425-4 | 1106461-4 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Type | Hood | Hood | Hood |
| Style | Side Entry | Side Entry | Top Entry |
| Size | 8 | 3 | 8 |
| Lock Location | Locking Clip (2) on Base Bottom | Screw Locks on Hood | Screw Locks on Hood |
| Thread Size | M32 | M25 | M40 |
| Size / Dimension | 4.724" L x 1.693" W x 2.756" H (120.00mm x 43.00mm x 70.00mm) | 3.780" L x 2.087" W x 2.756" H (96.00mm x 53.00mm x 70.00mm) | 6.142" L x 2.087" W x 3.543" H (156.00mm x 53.00mm x 90.00mm) |
| Housing Color | Gray | Black | Black |
| Features | - | - | - |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | IP68 - Dust Tight, Waterproof |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum | Aluminum Alloy, Die Cast |
| Housing Finish | Powder Coated | Aluminum Oxide | EMC Coating |
| Operating Temperature | - | - | - |
