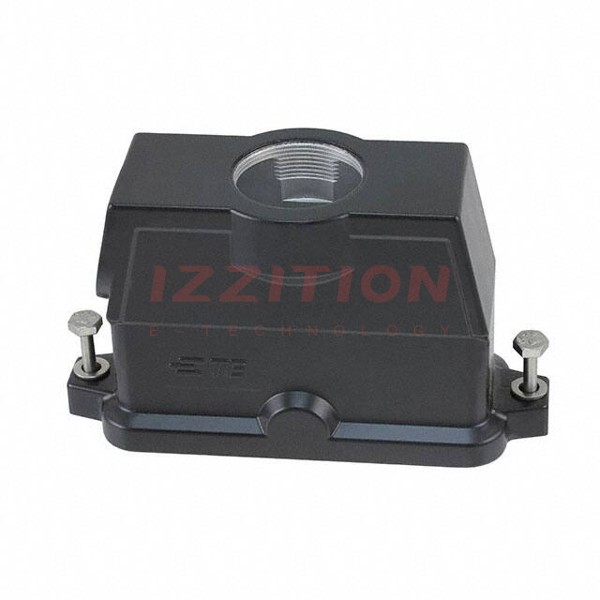

| Part Number | 1106461-4 | 1106465-4 | 1106481-4 | 1106461-2 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Type | Hood | Hood | Base - Box Mount | Hood |
| Style | Top Entry | Side Entry | Side Entry | Side Entry |
| Size | 8 | 8 | 12 | 8 |
| Lock Location | Screw Locks on Hood | Locking Clip (2) on Base Bottom | Locking Clip (1) on Base Bottom | Screw Locks on Hood |
| Thread Size | M40 | M32 | M40 | M40 |
| Size / Dimension | 6.142" L x 2.087" W x 3.543" H (156.00mm x 53.00mm x 90.00mm) | 4.724" L x 1.693" W x 2.756" H (120.00mm x 43.00mm x 70.00mm) | 5.512" L x 4.724" W x 3.878" H (140.00mm x 120.00mm x 98.50mm) | 6.142" L x 2.087" W x 3.543" H (156.00mm x 53.00mm x 90.00mm) |
| Housing Color | Black | Gray | Black | Gray |
| Features | - | - | Feed Through | - |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | IP68 - Dust Tight, Waterproof |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast | Aluminum | Aluminum Alloy, Die Cast |
| Housing Finish | EMC Coating | Powder Coated | Aluminum Oxide | Powder Coated |
| Operating Temperature | - | - | - | -40°C ~ 80°C |
