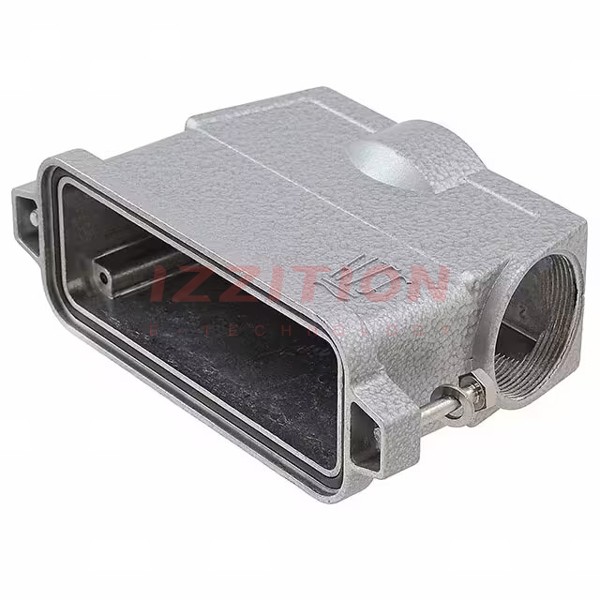

| Part Number | 1106461-2 | 1106461-4 | 1106401-2 | 1106411-2 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Type | Hood | Hood | Base - Panel Mount 90° | Hood |
| Style | Side Entry | Top Entry | Side Entry | Side Entry |
| Size | 8 | 8 | 1 | 2 |
| Lock Location | Screw Locks on Hood | Screw Locks on Hood | Screw Locks on Hood | Locking Clip (1) on Base Bottom |
| Thread Size | M40 | M40 | M16 | M20 |
| Size / Dimension | 6.142" L x 2.087" W x 3.543" H (156.00mm x 53.00mm x 90.00mm) | 6.142" L x 2.087" W x 3.543" H (156.00mm x 53.00mm x 90.00mm) | 2.008" L x 1.890" W x 1.220" H (51.00mm x 48.00mm x 31.00mm) | 2.480" L x 1.142" W x 2.256" H (63.00mm x 29.00mm x 57.30mm) |
| Housing Color | Gray | Black | Black | Gray |
| Features | - | - | - | - |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof | IP65 - Dust Tight, Water Resistant |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast | Aluminum | Aluminum, Die Cast |
| Housing Finish | Powder Coated | EMC Coating | Chromite TCP Passivation | Powder Coated |
| Operating Temperature | -40°C ~ 80°C | - | -40°C ~ 80°C | - |
