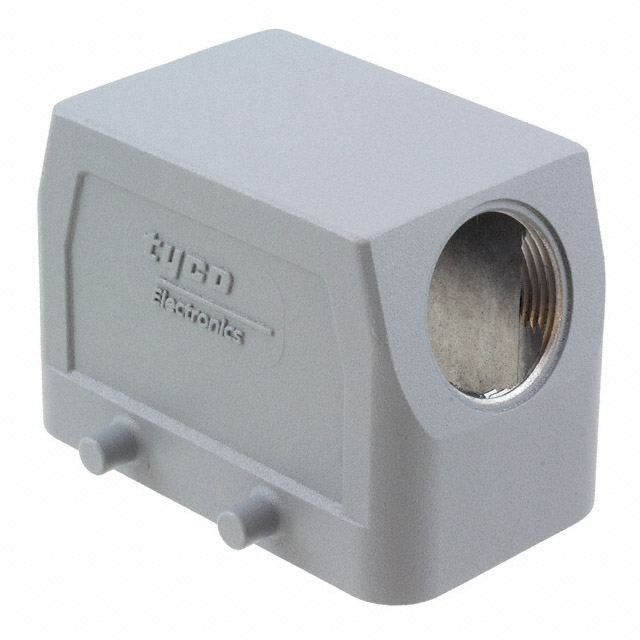

| Part Number | 1106430-4 | 1106434-4 | 1106436-4 | 1106430-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Obsolete |
| Connector Type | Hood | Hood | Hood | Hood |
| Style | Side Entry | Side Entry | Side Entry | Top Entry |
| Size | 4 | 4 | 4 | 4 |
| Lock Location | Locking Clip (2) on Base Bottom | Locking Clip (2) on Base Bottom | Screw Locks on Hood | Locking Clip (2) on Base Bottom |
| Thread Size | M25 | M32 | M25 | M25 |
| Size / Dimension | 2.874" L x 1.693" W x 1.969" H (73.00mm x 43.00mm x 50.00mm) | 2.874" L x 1.693" W x 2.756" H (73.00mm x 43.00mm x 70.00mm) | 4.291" L x 2.087" W x 2.756" H (109.00mm x 53.00mm x 70.00mm) | 2.874" L x 1.693" W x 1.969" H (73.00mm x 43.00mm x 50.00mm) |
| Housing Color | Gray | Gray | Black | Gray |
| Features | - | - | - | - |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | IP65 - Dust Tight, Water Resistant |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum, Die Cast | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Housing Finish | Powder Coated | Powder Coated | Aluminum Oxide | Powder Coated |
| Operating Temperature | - | - | - | - |
