Please send RFQ , we will respond immediately.

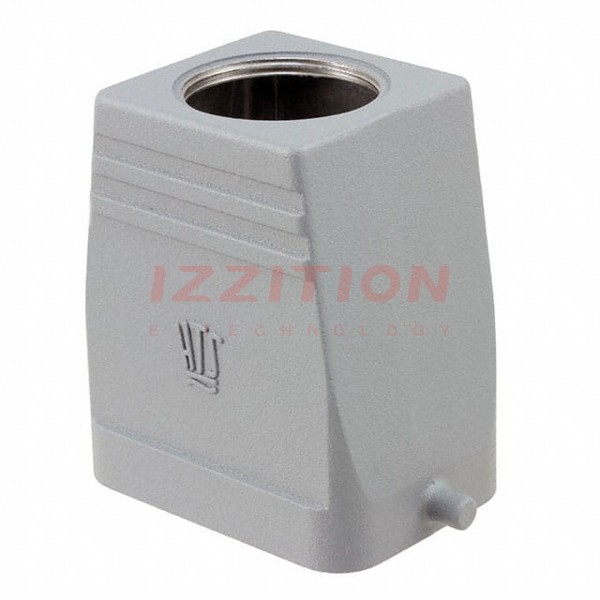

| Part Number | 1106423-1 | 1106403-1 | 1106413-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity |
| Product Status | Active | Obsolete | Active |
| Connector Type | Hood | Hood - Coupling | Base - Box Mount |
| Style | Top Entry | Bottom Entry | Side Entry, Dual |
| Size | 3 | 1 | 2 |
| Lock Location | Locking Clip (1) on Base Bottom | Locking Clip (1) on Hood Top | Locking Clip (1) on Base Bottom |
| Thread Size | M25 | M16 | M25 |
| Size / Dimension | 2.362" L x 1.693" W x 2.756" H (60.00mm x 43.00mm x 70.00mm) | 0.945" L x 0.945" W x 1.811" H (24.00mm x 24.00mm x 46.00mm) | 3.189" L x 1.917" W x 2.283" H (81.00mm x 48.70mm x 58.00mm) |
| Housing Color | Gray | Gray | Gray |
| Features | - | Cable to Cable | Cover, Feed Through |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | - |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast | Aluminum |
| Housing Finish | Powder Coated | Powder Coated | - |
| Operating Temperature | - | - | - |
