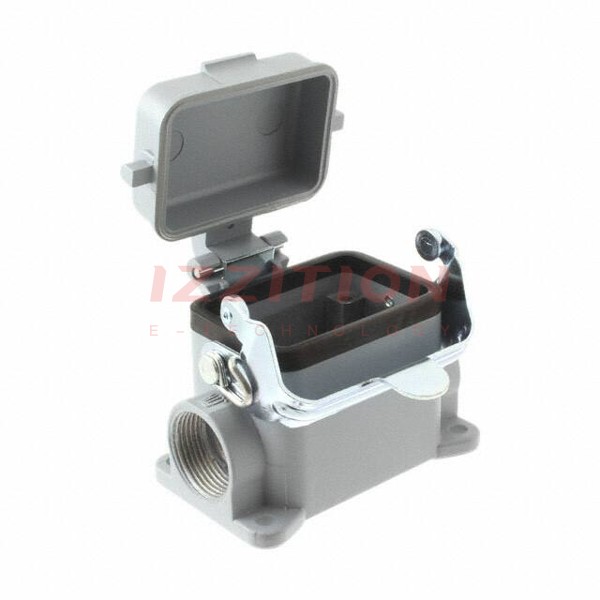

| Part Number | 1106418-1 | 1106419-1 | 1106411-1 | 1106413-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity |
| Product Status | Obsolete | Active | Active | Active |
| Connector Type | Base - Box Mount | Hood | Hood | Base - Box Mount |
| Style | Side Entry | Top Entry | Top Entry | Side Entry, Dual |
| Size | 3 | 3 | 2 | 2 |
| Lock Location | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom |
| Thread Size | M25 | M25 | M20 | M25 |
| Size / Dimension | 3.228" L x 2.047" W x 1.949" H (82.00mm x 52.00mm x 49.50mm) | 2.362" L x 1.693" W x 1.890" H (60.00mm x 43.00mm x 48.00mm) | 2.480" L x 1.142" W x 2.256" H (63.00mm x 29.00mm x 57.30mm) | 3.189" L x 1.917" W x 2.283" H (81.00mm x 48.70mm x 58.00mm) |
| Housing Color | Gray | Gray | Gray | Gray |
| Features | Cover, Feed Through | - | - | Cover, Feed Through |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | - |
| Housing Material | Aluminum | Aluminum Alloy, Die Cast | Aluminum, Die Cast | Aluminum |
| Housing Finish | - | Powder Coated | Powder Coated | - |
| Operating Temperature | -40°C ~ 80°C | - | - | - |
