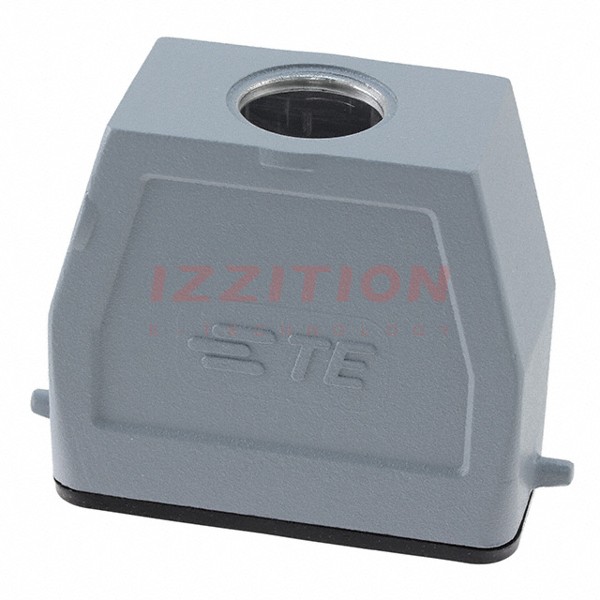

| Part Number | 1106411-1 | 1106411-2 | 1106413-1 | 1106419-1 | 1106418-1 | 1106481-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Obsolete | Active |
| Connector Type | Hood | Hood | Base - Box Mount | Hood | Base - Box Mount | Base - Box Mount |
| Style | Top Entry | Side Entry | Side Entry, Dual | Top Entry | Side Entry | Side Entry |
| Size | 2 | 2 | 2 | 3 | 3 | 12 |
| Lock Location | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom |
| Thread Size | M20 | M20 | M25 | M25 | M25 | M40 |
| Size / Dimension | 2.480" L x 1.142" W x 2.256" H (63.00mm x 29.00mm x 57.30mm) | 2.480" L x 1.142" W x 2.256" H (63.00mm x 29.00mm x 57.30mm) | 3.189" L x 1.917" W x 2.283" H (81.00mm x 48.70mm x 58.00mm) | 2.362" L x 1.693" W x 1.890" H (60.00mm x 43.00mm x 48.00mm) | 3.228" L x 2.047" W x 1.949" H (82.00mm x 52.00mm x 49.50mm) | 5.512" L x 4.724" W x 3.878" H (140.00mm x 120.00mm x 98.50mm) |
| Housing Color | Gray | Gray | Gray | Gray | Gray | Gray |
| Features | - | - | Cover, Feed Through | - | Cover, Feed Through | Cover, Feed Through |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | - | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Housing Material | Aluminum, Die Cast | Aluminum, Die Cast | Aluminum | Aluminum Alloy, Die Cast | Aluminum | Aluminum |
| Housing Finish | Powder Coated | Powder Coated | - | Powder Coated | - | - |
| Operating Temperature | - | - | - | - | -40°C ~ 80°C | -40°C ~ 80°C |
