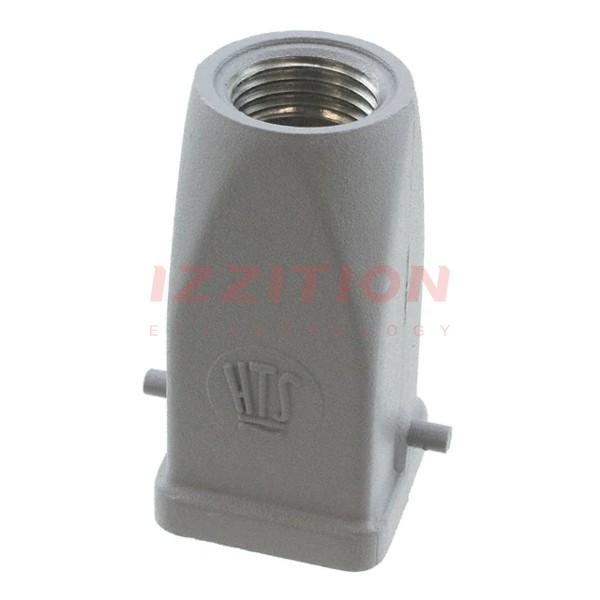

| Part Number | 1106405-1 | 1106405-3 | 1106403-1 | 1106404-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Obsolete | Active |
| Connector Type | Hood | Hood | Hood - Coupling | Base - Panel Mount 90° |
| Style | Top Entry | Top Entry | Bottom Entry | Side Entry |
| Size | 1 | 1 | 1 | 1 |
| Lock Location | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom | Locking Clip (1) on Hood Top | Locking Clip (1) on Base Bottom |
| Thread Size | M16 | M20 | M16 | M16 |
| Size / Dimension | 1.043" L x 1.043" W x 2.047" H (26.50mm x 26.50mm x 52.00mm) | 1.043" L x 1.043" W x 2.047" H (26.50mm x 26.50mm x 52.00mm) | 0.945" L x 0.945" W x 1.811" H (24.00mm x 24.00mm x 46.00mm) | 1.575" L x 1.102" W x 1.004" H (40.00mm x 28.00mm x 25.50mm) |
| Housing Color | Gray | Gray | Gray | Gray |
| Features | - | - | Cable to Cable | - |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Housing Material | Zinc, Die Cast | Zinc, Die Cast | Aluminum Alloy, Die Cast | Zinc, Die Cast |
| Housing Finish | Powder Coated | Powder Coated | Powder Coated | Powder Coated |
| Operating Temperature | - | - | - | - |
