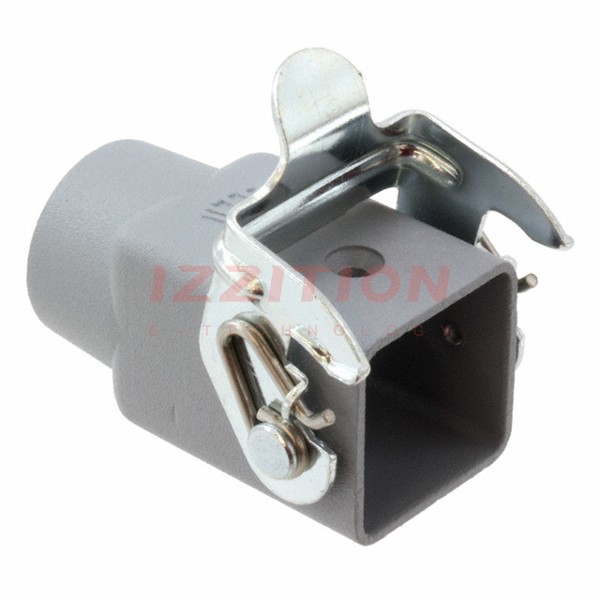

| Part Number | 1106403-1 | 1106405-1 | 1106413-1 | 1106404-1 | 1106423-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Active | Active | Active |
| Connector Type | Hood - Coupling | Hood | Base - Box Mount | Base - Panel Mount 90° | Hood |
| Style | Bottom Entry | Top Entry | Side Entry, Dual | Side Entry | Top Entry |
| Size | 1 | 1 | 2 | 1 | 3 |
| Lock Location | Locking Clip (1) on Hood Top | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom |
| Thread Size | M16 | M16 | M25 | M16 | M25 |
| Size / Dimension | 0.945" L x 0.945" W x 1.811" H (24.00mm x 24.00mm x 46.00mm) | 1.043" L x 1.043" W x 2.047" H (26.50mm x 26.50mm x 52.00mm) | 3.189" L x 1.917" W x 2.283" H (81.00mm x 48.70mm x 58.00mm) | 1.575" L x 1.102" W x 1.004" H (40.00mm x 28.00mm x 25.50mm) | 2.362" L x 1.693" W x 2.756" H (60.00mm x 43.00mm x 70.00mm) |
| Housing Color | Gray | Gray | Gray | Gray | Gray |
| Features | Cable to Cable | - | Cover, Feed Through | - | - |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | - | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Housing Material | Aluminum Alloy, Die Cast | Zinc, Die Cast | Aluminum | Zinc, Die Cast | Aluminum Alloy, Die Cast |
| Housing Finish | Powder Coated | Powder Coated | - | Powder Coated | Powder Coated |
| Operating Temperature | - | - | - | - | - |
