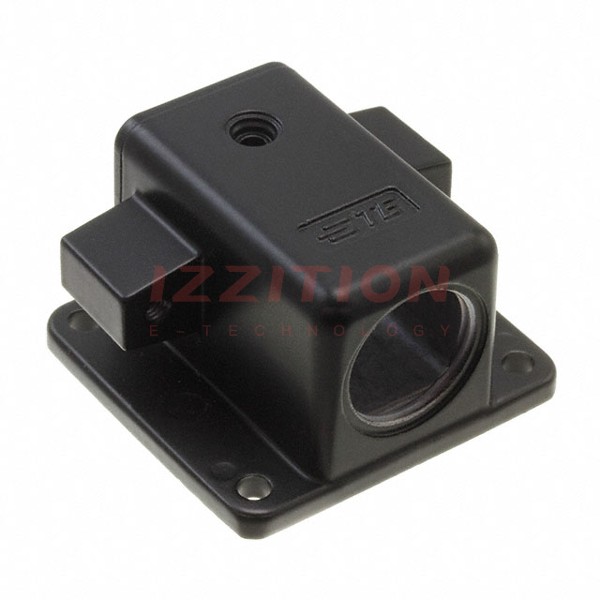

| Part Number | 1106401-3 | 1106405-3 | 1106404-3 | 1106401-2 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Obsolete | Active |
| Connector Type | Base - Panel Mount 90° | Hood | Base - Panel Mount 90° | Base - Panel Mount 90° |
| Style | Side Entry | Top Entry | Side Entry | Side Entry |
| Size | 1 | 1 | 1 | 1 |
| Lock Location | Screw Locks on Hood | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom | Screw Locks on Hood |
| Thread Size | M20 | M20 | M20 | M16 |
| Size / Dimension | 2.008" L x 1.890" W x 1.220" H (51.00mm x 48.00mm x 31.00mm) | 1.043" L x 1.043" W x 2.047" H (26.50mm x 26.50mm x 52.00mm) | 1.575" L x 1.102" W x 1.004" H (40.00mm x 28.00mm x 25.50mm) | 2.008" L x 1.890" W x 1.220" H (51.00mm x 48.00mm x 31.00mm) |
| Housing Color | Black | Gray | Gray | Black |
| Features | - | - | - | - |
| Ingress Protection | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | IP68 - Dust Tight, Waterproof |
| Housing Material | Aluminum | Zinc, Die Cast | Zinc, Die Cast | Aluminum |
| Housing Finish | Chromite TCP Passivation | Powder Coated | Powder Coated | Chromite TCP Passivation |
| Operating Temperature | -40°C ~ 80°C | - | - | -40°C ~ 80°C |
