Please send RFQ , we will respond immediately.

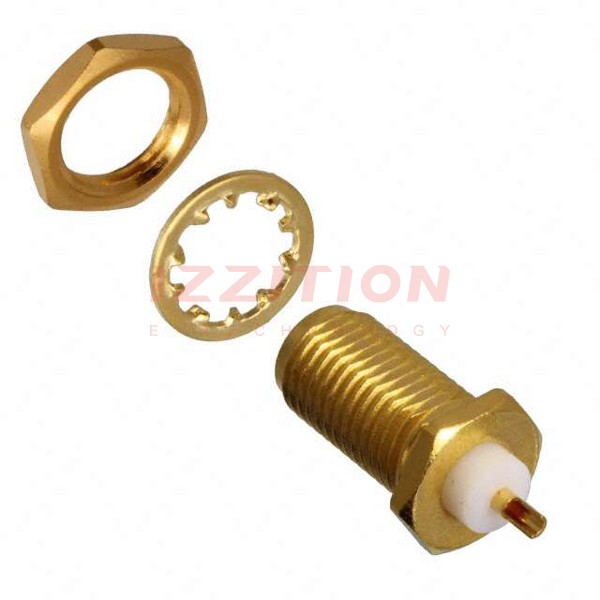

| Part Number | 1053221-1 | 1053222-1 | 1053261-1 | 1053241-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Style | SMA | SMA | SMA | SMA |
| Connector Type | Receptacle, Female Socket | Receptacle, Female Socket | Receptacle, Female Socket | Receptacle, Female Socket |
| Contact Termination | Solder | Solder | Compression | Solder |
| Shield Termination | Solder | Solder | Solder | Solder |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount, Threaded | Panel Mount, Threaded |
| Mounting Feature | Bulkhead - Front or Rear Side Nut | Bulkhead - Front or Rear Side Nut | - | - |
| Cable Group | - | - | - | - |
| Fastening Type | Threaded | Threaded | Threaded | Threaded |
| Frequency - Max | 18 GHz | 18 GHz | 18 GHz | - |
| Number of Ports | 1 | 1 | 1 | 1 |
| Features | Extended Insulation | Extended Insulation | Field Replaceable, For Hermetically Sealed Pin | Extended Insulation, Hermetically Sealed |
| Housing Color | Gold | Silver | Silver | Gold |
| Ingress Protection | - | - | - | - |
| Center Contact Material | Beryllium Copper | Beryllium Copper | Beryllium Copper | Beryllium Copper |
