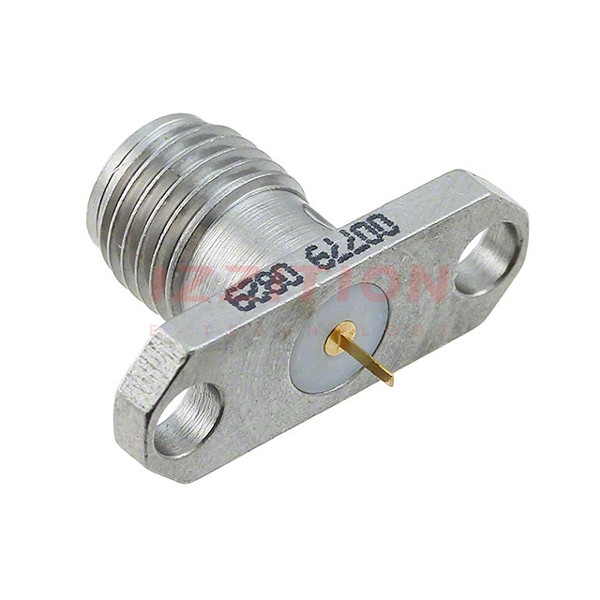

| Part Number | 1052928-1 | 1052978-1 | 1052528-1 | 1052628-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Discontinued at Digi-Key | Obsolete | Obsolete |
| Connector Style | SMA | SMA | SMA | SMA |
| Connector Type | Receptacle, Female Socket | Receptacle, Female Socket | Receptacle, Female Socket | Receptacle, Female Socket |
| Contact Termination | Solder Tab | Solder | Solder, Microstrip | Compression |
| Shield Termination | Solder | Solder | Solder | Screw |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Panel Mount | Panel Mount, Right Angle | Panel Mount | Panel Mount |
| Mounting Feature | Flange | Flange | Flange | Flange |
| Cable Group | - | - | - | - |
| Fastening Type | Threaded | Threaded | Threaded | Threaded |
| Frequency - Max | 18 GHz | 12.4 GHz | 18 GHz | 18 GHz |
| Number of Ports | 1 | 1 | 1 | 1 |
| Features | - | Extended Insulation | Extended Insulation | EMI/RFI Gasket, Field Replaceable, For Hermetically Sealed Pin |
| Housing Color | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - |
| Center Contact Material | Beryllium Copper | Beryllium Copper | Beryllium Copper | Beryllium Copper |
