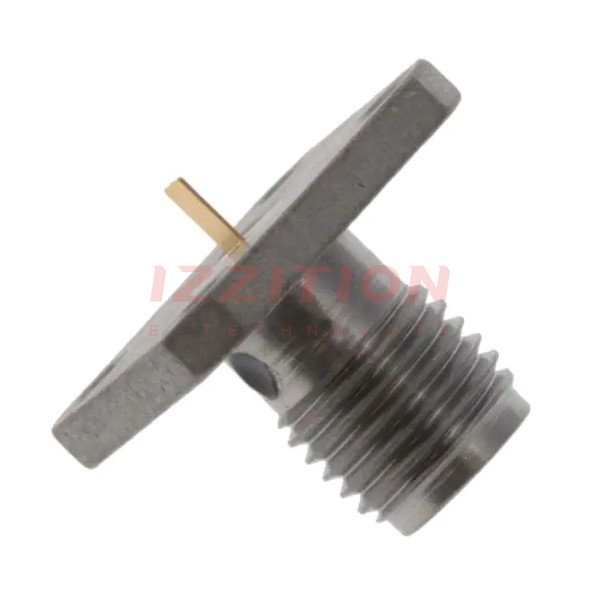

| Part Number | 1052566-1 | 1059566-1 | 1052066-1 | 1052563-1 | 1052565-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity Aerospace, Defense and Marine | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Connector Style | SMA | OSP, Mini | SMA | SMA | SMA |
| Connector Type | Receptacle, Female Socket | Receptacle, Male Pin | Plug, Male Pin | Receptacle, Female Socket | Receptacle, Female Socket |
| Contact Termination | Solder Tab | Solder | Solder | Solder | Solder Tab |
| Shield Termination | Solder | Solder | Solder | Solder | Solder |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Panel Mount | Panel Mount | Free Hanging (In-Line), Right Angle | Panel Mount | Panel Mount |
| Mounting Feature | Flange | Flange | - | Flange | Flange |
| Cable Group | - | - | RG-188 | - | - |
| Fastening Type | Threaded | Snap-On | Threaded | Threaded | Threaded |
| Frequency - Max | 18 GHz | 18 GHz | 12.4 GHz | 18 GHz | 18 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 |
| Features | - | Extended Insulation | - | - | - |
| Housing Color | Silver | Silver | Gold | Silver | Gold |
| Ingress Protection | - | - | - | - | - |
| Center Contact Material | Beryllium Copper | Beryllium Copper | Beryllium Copper | Beryllium Copper | Beryllium Copper |
