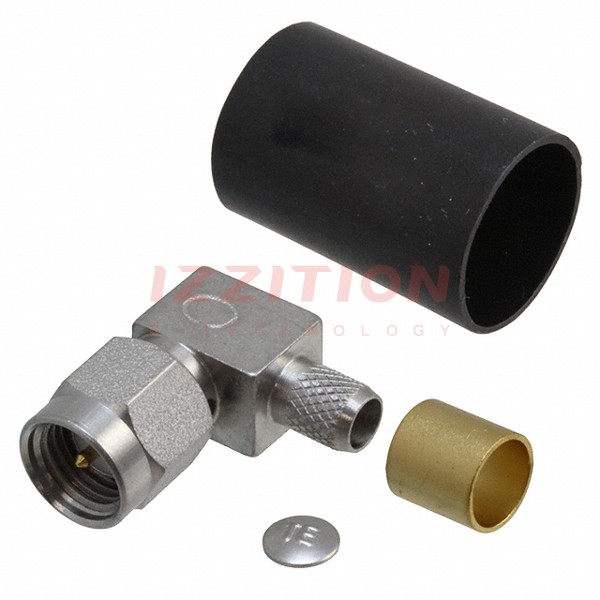

| Part Number | 1052072-1 | 1053072-1 | 1052076-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete |
| Connector Style | SMA | SMA | SMA |
| Connector Type | Plug, Male Pin | Receptacle, Female Socket | Plug, Male Pin |
| Contact Termination | Solder | Solder Cup | Solder |
| Shield Termination | Crimp | Solder | Crimp |
| Impedance | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Free Hanging (In-Line), Right Angle | Panel Mount | Free Hanging (In-Line), Right Angle |
| Mounting Feature | - | Bulkhead - Front Side Nut | - |
| Cable Group | RG-55, 142, 223, 400 | - | RG-188 |
| Fastening Type | Threaded | Threaded | Threaded |
| Frequency - Max | - | 18 GHz | - |
| Number of Ports | 1 | 1 | 1 |
| Features | - | Extended Insulation | - |
| Housing Color | Silver | Gold | Silver |
| Ingress Protection | - | - | - |
| Center Contact Material | Beryllium Copper | Beryllium Copper | Beryllium Copper |
