Please send RFQ , we will respond immediately.

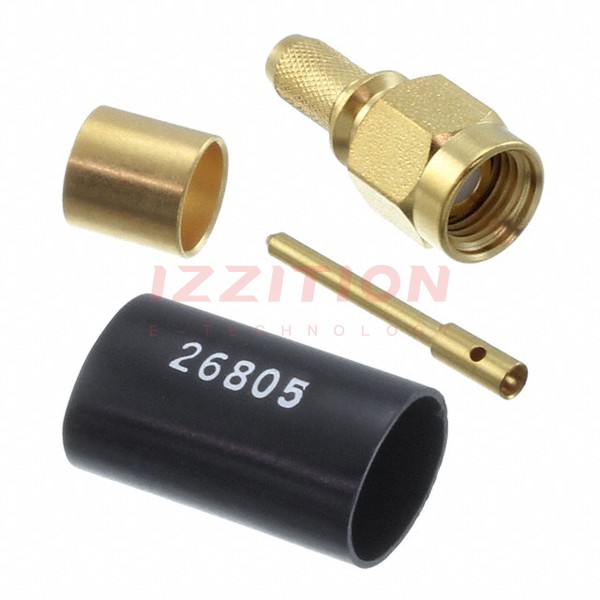

| Part Number | 1051650-1 | 1051654-1 | 1051655-1 | 1051150-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Style | SMA | SMA | SMA | SMA |
| Connector Type | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin |
| Contact Termination | Solder | Solder | Solder | Solder |
| Shield Termination | Crimp | Crimp | Crimp | Solder |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Mounting Feature | - | - | - | - |
| Cable Group | RG-142 | RG-188 | RG-188 | RG-402 (.141" Semi Rigid) |
| Fastening Type | Threaded | Threaded | Threaded | Threaded |
| Frequency - Max | 12.4 GHz | 12.4 GHz | 12.4 GHz | 12 GHz |
| Number of Ports | 1 | 1 | 1 | 1 |
| Features | - | - | - | - |
| Housing Color | Gold | Gold | Silver | Gold |
| Ingress Protection | - | - | - | - |
| Center Contact Material | Beryllium Copper | Beryllium Copper | Beryllium Copper | Beryllium Copper |
