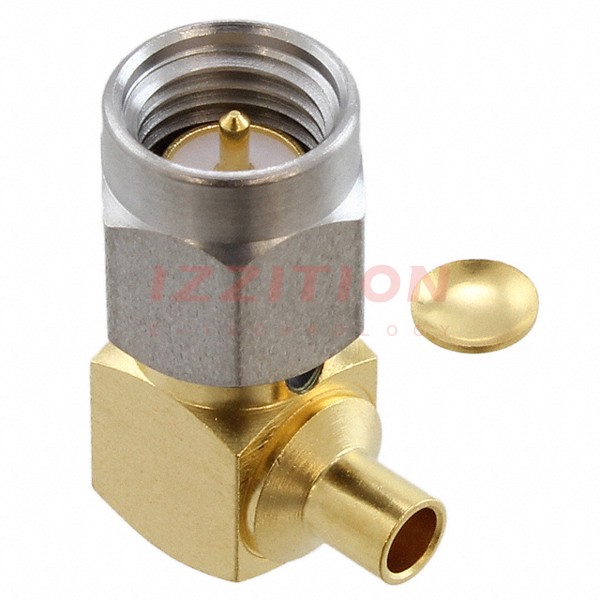

| Part Number | 1051114-1 | 1051144-1 | 1051110-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete |
| Connector Style | SMA | SMA | SMA |
| Connector Type | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin |
| Contact Termination | Solder | Solder | Solder |
| Shield Termination | Solder | Clamp | Solder |
| Impedance | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Mounting Feature | - | - | - |
| Cable Group | RG-405 (.085" Semi Rigid) | RG-180, 190 | RG-402 (.141" Semi Rigid) |
| Fastening Type | Threaded | Threaded | Threaded |
| Frequency - Max | 18 GHz | 12.4 GHz | 18 GHz |
| Number of Ports | 1 | 1 | 1 |
| Features | - | - | - |
| Housing Color | Gold, Silver | Silver | Gold, Silver |
| Ingress Protection | - | - | - |
| Center Contact Material | Beryllium Copper | Brass | Beryllium Copper |
