Please send RFQ , we will respond immediately.

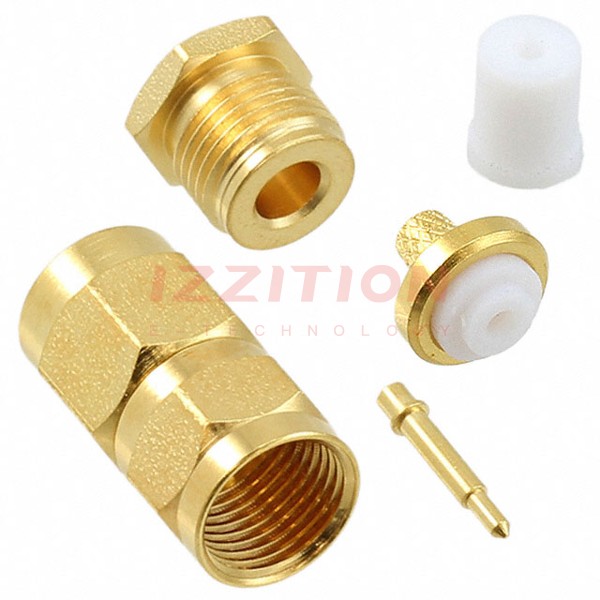

| Part Number | 1050720-1 | 1050770-1 | 1050740-1 | 1050721-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Style | SMA | SMA | SMA | SMA |
| Connector Type | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin |
| Contact Termination | Solder | Solder | Push On | Solder |
| Shield Termination | Clamp | Solder | Crimp | Clamp |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - | - | - |
| Cable Group | RG-188 | RG-405 (.085" Semi Rigid) | RG-402 (.141" Semi Rigid) | RG-188 |
| Fastening Type | Threaded | Threaded | Threaded | Threaded |
| Frequency - Max | 18 GHz | 18 GHz | 18 GHz | 18 GHz |
| Number of Ports | 1 | 1 | 1 | 1 |
| Features | - | - | - | - |
| Housing Color | Gold | Gold, Silver | Silver | Silver |
| Ingress Protection | - | - | - | - |
| Center Contact Material | Beryllium Copper | Beryllium Copper | - | Beryllium Copper |
