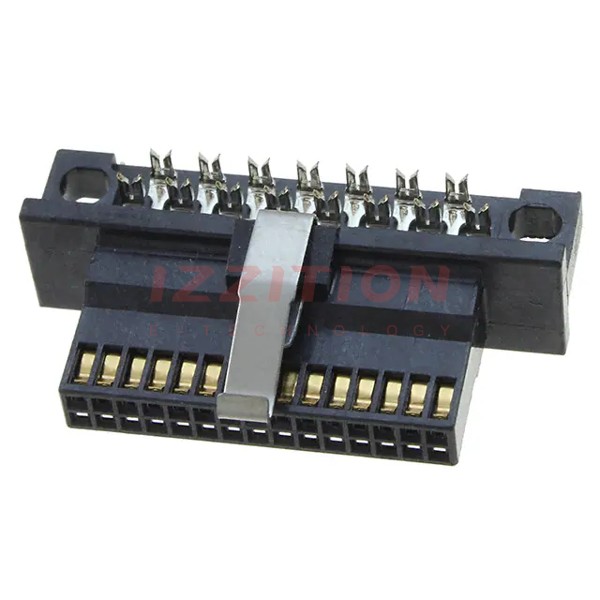

| Part Number | 104892-3 | 104893-3 | 104892-4 | 104892-5 | 104892-7 | 104892-8 | 104892-2 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle |
| Contact Type | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket |
| Number of Positions | 30 | 30 | 40 | 50 | 70 | 80 | 20 |
| Pitch | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Row Spacing | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Fastening Type | Latch Lock | - | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock |
| Cable Termination | IDC | IDC | IDC | IDC | IDC | IDC | IDC |
| Wire Type | Ribbon Cable | Ribbon Cable | Ribbon Cable | Ribbon Cable | Ribbon Cable | Ribbon Cable | Ribbon Cable |
| Wire Gauge | 28 AWG | 28 AWG | 28 AWG | 28 AWG | 28 AWG | 28 AWG | 28 AWG |
| Features | - | Closed End | - | - | - | - | - |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | Black | Black | Black | Black | Black | Black | Black |
