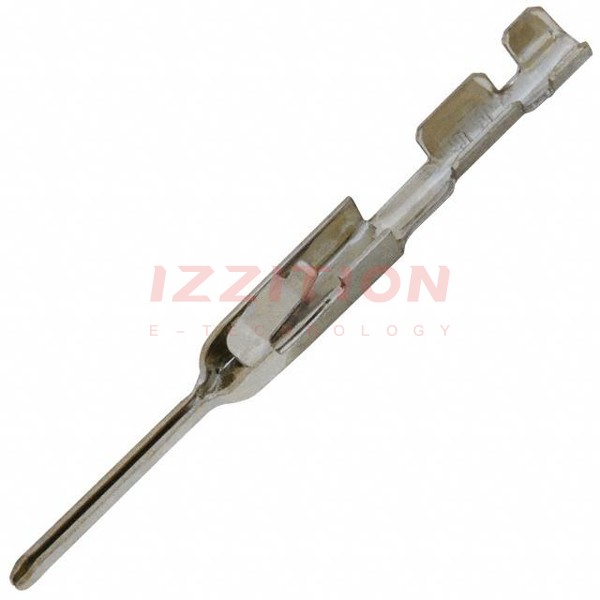

| Part Number | 104505-3 | 104505-8 | 104505-5 | 104505-7 | 104505-9 | 104505-6 | 104505-4 | 104506-3 | 104505-2 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - | - | - | - | - |
| Pin or Socket | Pin | Pin | Pin | Pin | Pin | Pin | Pin | Pin | Pin |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 22-26 AWG | 22-26 AWG | 22-26 AWG | 22-26 AWG | 22-26 AWG | 22-26 AWG | 22-26 AWG | 28-32 AWG | 22-26 AWG |
| Contact Finish | Tin-Lead | Tin | Gold | Gold | Tin | Gold | Gold | Tin-Lead | Tin-Lead |
| Contact Finish Thickness | 100.0µin (2.54µm) | 100.0µin (2.54µm) | 15.0µin (0.38µm) | 30.0µin (0.76µm) | 100.0µin (2.54µm) | 30.0µin (0.76µm) | 15.0µin (0.38µm) | 100.0µin (2.54µm) | 100.0µin (2.54µm) |
