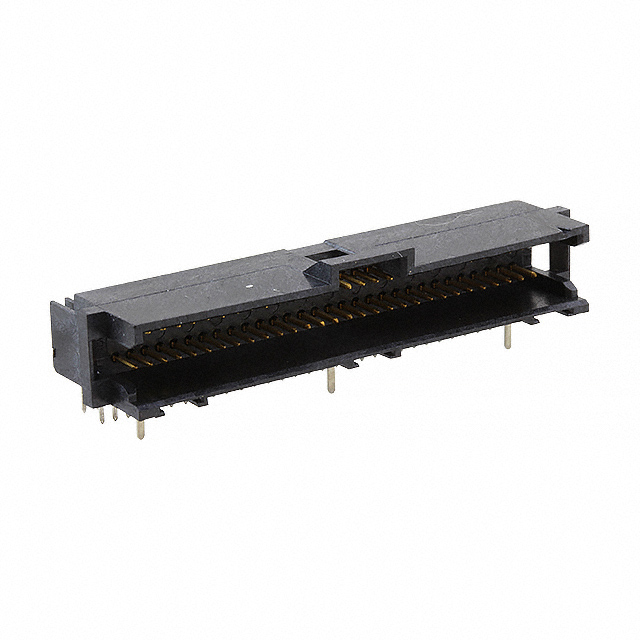

| Part Number | 104477-9 | 104427-9 | 104477-5 | 104477-7 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete | Obsolete | Active |
| Connector Type | Header | Header, Breakaway | Header | Header |
| Contact Type | Male Pin | Male Pin | Male Pin | Male Pin |
| Pitch - Mating | 0.050" (1.27mm) | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.050" (1.27mm) |
| Number of Positions | 60 | 11 | 50 | 100 |
| Number of Rows | 2 | 1 | 2 | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) | - | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Positions Loaded | All | All | All | All |
| Style | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable |
| Shrouding | Shrouded - 2 Wall | Unshrouded | Shrouded - 2 Wall | Shrouded - 2 Wall |
| Mounting Type | Through Hole, Right Angle | Through Hole | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Press-Fit, Solder | Solder | Solder |
| Fastening Type | Latch Holder | Push-Pull | Latch Holder | Latch Holder |
| Contact Length - Mating | 0.125" (3.18mm) | 0.318" (8.08mm) | 0.125" (3.18mm) | 0.125" (3.18mm) |
| Contact Length - Post | 0.145" (3.68mm) | 0.120" (3.05mm) | 0.145" (3.68mm) | 0.145" (3.68mm) |
| Overall Contact Length | - | 0.528" (13.42mm) | - | - |
| Insulation Height | 0.290" (7.37mm) | 0.090" (2.29mm) | 0.290" (7.37mm) | 0.290" (7.37mm) |
| Contact Shape | Circular | Square | Circular | Circular |
| Contact Finish - Mating | Gold | Gold | Gold | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | 15.0µin (0.38µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy |
| Insulation Material | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic |
| Features | Board Guide | - | Board Guide | Board Guide |
| Operating Temperature | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C |
| Ingress Protection | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Insulation Color | Black | Black | Black | Black |
| Current Rating (Amps) | - | 3A | - | - |
| Voltage Rating | 30VAC | 30VAC | 30VAC | 30VAC |
