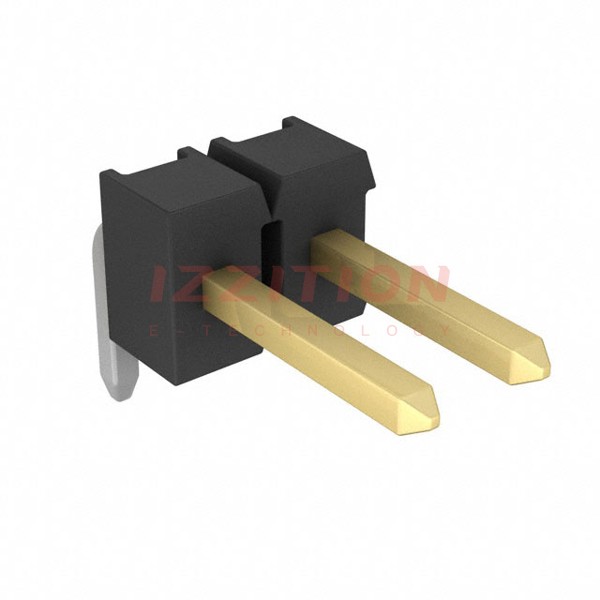

TE Connectivity AMP Connectors 104445-1

Manufacturer No:
104445-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tray
Datasheet:
104445-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 2POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:2
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole, Right Angle
Termination:Press-Fit, Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.318" (8.08mm)
Contact Length - Post:0.110" (2.79mm)
Overall Contact Length:-
Insulation Height:0.138" (3.50mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin-Lead
Contact Material:Phosphor Bronze
Insulation Material:Thermoplastic
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

-
477

Please send RFQ , we will respond immediately.
