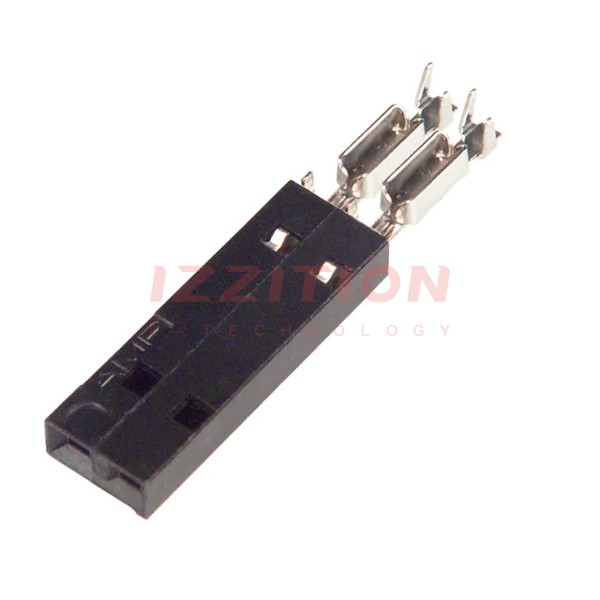

| Part Number | 103974-1 | 103976-1 | 103975-1 | 103974-3 | 103974-2 | 103974-4 | 103974-5 | 103974-7 | 103974-6 | 103974-8 | 103944-1 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Obsolete | Active |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Plug |
| Contact Type | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Male Pin |
| Number of Positions | 2 | 2 | 2 | 4 | 3 | 5 | 6 | 8 | 7 | 9 | 2 |
| Pitch | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Row Spacing | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Fastening Type | - | - | - | - | - | - | - | - | - | - | - |
| Cable Termination | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC |
| Wire Type | Ribbon Cable | Ribbon Cable | Ribbon Cable | Ribbon Cable | Ribbon Cable | Ribbon Cable | Ribbon Cable | Ribbon Cable | Ribbon Cable | Ribbon Cable | Ribbon Cable |
| Wire Gauge | 22-26 AWG | 22-26 AWG | 22-26 AWG | 22-26 AWG | 22-26 AWG | 22-26 AWG | 22-26 AWG | 22-26 AWG | 22-26 AWG | 22-26 AWG | 22-26 AWG |
| Features | Closed End | Closed End | Closed End | Closed End | Closed End | Closed End | Closed End | Closed End | Closed End | Closed End | Closed End |
| Contact Finish | Tin-Lead | Gold | Gold | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead |
| Contact Finish Thickness | 100.0µin (2.54µm) | 30.0µin (0.76µm) | 15.0µin (0.38µm) | 100.0µin (2.54µm) | 100.0µin (2.54µm) | 100.0µin (2.54µm) | 100.0µin (2.54µm) | 100.0µin (2.54µm) | 100.0µin (2.54µm) | 100.0µin (2.54µm) | 100.0µin (2.54µm) |
| Color | Black | Black | Black | Black | Black | Black | Black | Black | Black | Black | Black |
