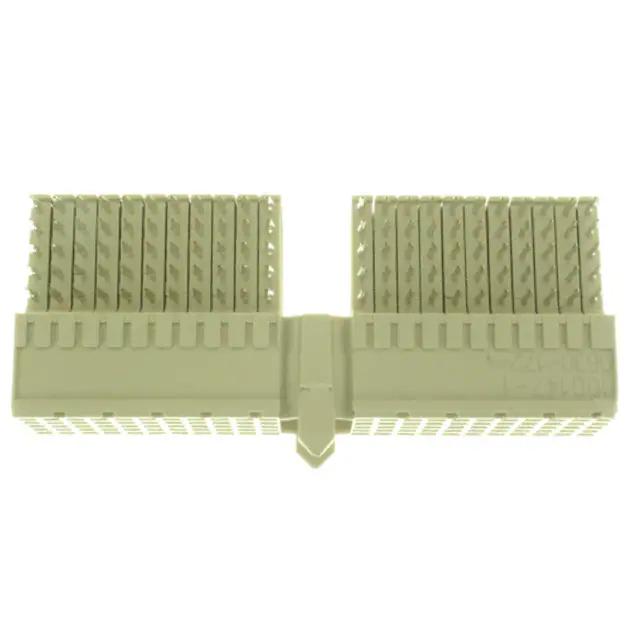

| Part Number | 100147-1 | 100147-9 | 100141-1 | 100143-1 | 100145-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete | Active | Active | Active |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Header, Male Pins | Header, Male Pins | Receptacle, Female Sockets |
| Connector Style | A 22 | A 22 | B 25 | A 22 | B 25 |
| Number of Positions | 110 | 110 | 125 | 110 | 125 |
| Number of Positions Loaded | All | All | All | All | All |
| Pitch | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Rows | 5 | 5 | 5 | 5 | 5 |
| Mounting Type | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Through Hole | Through Hole | Board Edge, Through Hole, Right Angle |
| Termination | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit |
| Connector Usage | - | - | Backplane | Backplane | Backplane |
| Contact Finish | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
