Please send RFQ , we will respond immediately.

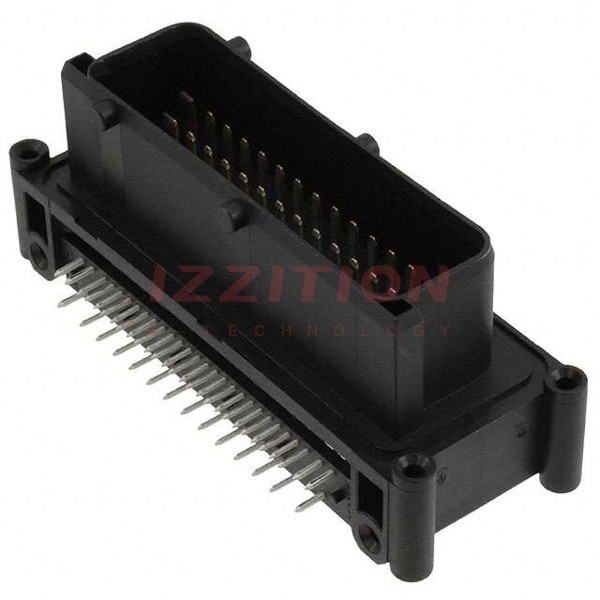

| Part Number | 1-967280-1 | 1-967250-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Plug | Header |
| Contact Type | Tab | Male Pin |
| Pitch - Mating | 0.197" (5.00mm) | 0.100" (2.54mm) |
| Number of Positions | 42 | 12 |
| Number of Rows | 3 | 2 |
| Row Spacing - Mating | 0.230" (5.84mm) | 0.100" (2.54mm) |
| Number of Positions Loaded | All | All |
| Style | Board to Board or Cable | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Solder |
| Fastening Type | Lever Lock | Friction Lock |
| Contact Length - Mating | 0.315" (8.00mm) | - |
| Contact Length - Post | 0.122" (3.10mm) | 0.130" (3.30mm) |
| Overall Contact Length | - | - |
| Insulation Height | 1.280" (32.50mm) | 0.772" (19.60mm) |
| Contact Shape | Rectangular | Square |
| Contact Finish - Mating | Tin | Tin |
| Contact Finish Thickness - Mating | - | - |
| Contact Finish - Post | Tin | Tin |
| Contact Material | Copper Alloy | Copper Alloy |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Mounting Flange | Board Lock |
| Operating Temperature | - | -40°C ~ 85°C |
| Ingress Protection | - | - |
| Material Flammability Rating | - | - |
| Insulation Color | Black | Black |
| Current Rating (Amps) | - | - |
| Voltage Rating | - | - |
