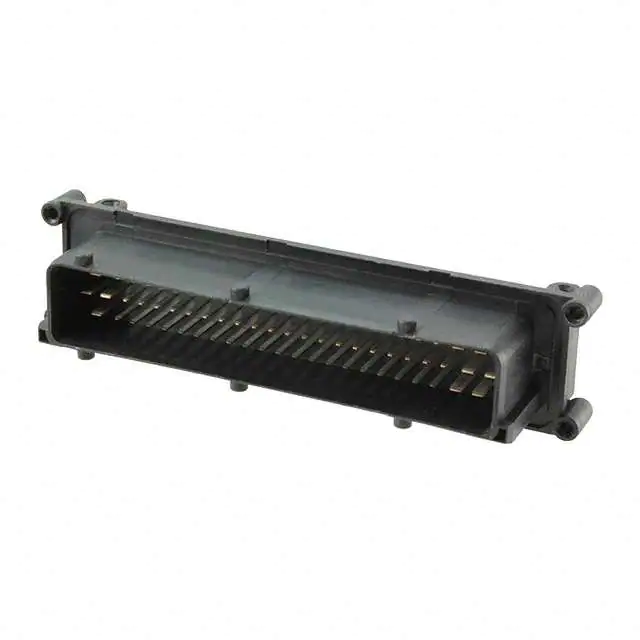

TE Connectivity AMP Connectors 1-963484-1

Manufacturer No:
1-963484-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tray
Datasheet:
1-963484-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 70POS 5MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Plug
Contact Type:Tab
Pitch - Mating:0.197" (5.00mm)
Number of Positions:70
Number of Rows:3
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Lever Lock
Contact Length - Mating:-
Contact Length - Post:0.122" (3.10mm)
Overall Contact Length:-
Insulation Height:1.280" (32.50mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
Features:Mounting Flange
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$23.34
41

Please send RFQ , we will respond immediately.
