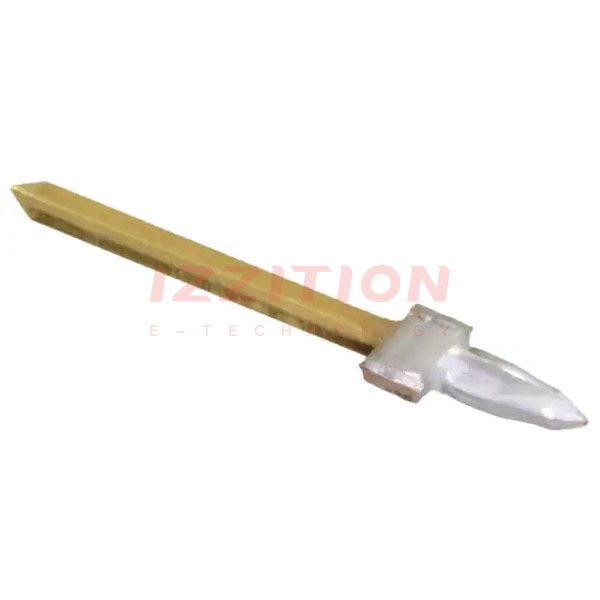

| Part Number | 1-928776-7 | 1-928776-4 | 1-928776-5 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Single Post | Single Post | Single Post |
| Terminal Style | Pin Retention | Pin Retention | Pin Retention |
| Pin Size - Above Flange | 0.025" (0.64mm) Square | 0.025" (0.64mm) Square | 0.025" (0.64mm) Square |
| Pin Size - Below Flange | 0.025" (0.64mm) Square | 0.025" (0.64mm) Square | 0.025" (0.64mm) Square |
| Length - Above Flange | - | - | - |
| Length - Below Flange | - | - | - |
| Length - Overall | 0.835" (21.21mm) | 0.520" (13.21mm) | 0.394" (10.00mm) |
| Flange Diameter | - | - | - |
| Mounting Hole Diameter | 0.035" (0.89mm) | 0.035" (0.89mm) | 0.035" (0.89mm) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Termination | Press-Fit | Press-Fit | Press-Fit |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Board Thickness | 0.063" (1.60mm) | 0.063" (1.60mm) | 0.063" (1.60mm) |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | 31.5µin (0.80µm) | 31.5µin (0.80µm) | 47.2µin (1.20µm) |
