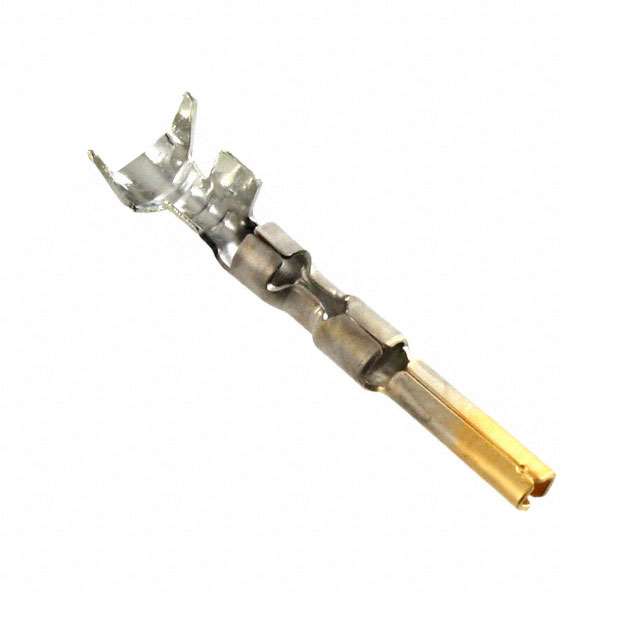

| Part Number | 1-794223-0 | 1-794229-0 | 1-794227-0 | 1-794228-0 | 1-794224-0 | 1-794226-0 | 1-794225-0 | 1-794220-0 | 1-794221-0 | 1-794222-0 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - | - | - | - | - | - |
| Pin or Socket | Socket | Socket | Socket | Pin | Pin | Pin | Socket | Pin | Socket | Pin |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 16-20 AWG | 18-22 AWG | 22-26 AWG | 18-22 AWG | 26-30 AWG | 22-26 AWG | 26-30 AWG | 18-22 AWG | 18-22 AWG | 16-20 AWG |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
